Frigoboat, Flat Evaporators for Air or Water Cooled Condensing Units

Mfr: Frigoboat Marine Refrigeration
$259.56 to $490.51
$259.56 to $490.51

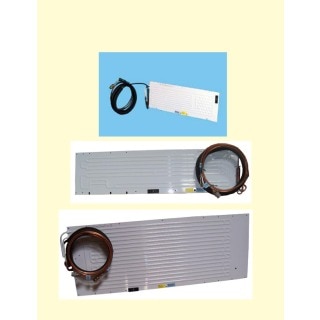

Frigoboat, Flat Evaporators for Air or Water Cooled Condensing Units

  • Volume = Refrigerator Volume
  • Pre-charged evaporator supplied with tubing and Frigoboat self-sealing couplings
  • Uses non-ozone depleting refrigerant R134a
  • Complete with mounting hardware
  • Epoxy painted with food grade enamel
  • Flat Evaporators can be bent to fit against two or more walls of the insulated box
  • Minimum bending radius is 1-1/2"
  • These flat evaporators must be installed with the long dimension being horizontal
  • Tubing is all copper for increased corrosion protection
  • Tubing length is 9.2 feet on all evaporators
  • Pre-charged tubing extensions available separately
  • RequiresCondensing Unit and Thermostat for complete system

Which Evaporator Should I use?

Item #
MPN
Refrigerator Volume
Freezer Volume
Height
Length
Frigoboat, 160F, Flat Evaporator
Item #:533901-9cu.ft.-NoCover
MPN:E50095
Refrigerator Volume: 9 cu ft
Freezer Volume: 3-1/2 cu ft
Height: 8-1/4"
Length: 31-3/4"
Frigoboat, 130F, Flat Evaporator
Item #:533901-5cu.ft.-NoCover
MPN:E50085
Refrigerator Volume: 5 cu ft
Freezer Volume: 2-1/2 cu ft
Height: 8-1/4"
Length: 24-3/4"
Frigoboat, 80F, Flat Evaporator
Item #:533901-3cu.ft.-NoCover
MPN:E50883
Refrigerator Volume: 3 cu ft
Freezer Volume: Not recommended
Height: 9-5/8"
Length: 13"
Frigoboat, 380F, Flat Evaporator
Item #:533901-20cu.ft.-NoCover
MPN:E52225
Refrigerator Volume: 20 cu ft
Freezer Volume: 10 cu ft
Height: 14-1/2"
Length: 39-1/4"
Frigoboat, 200F, Flat Evaporator
Item #:533901-15cu.ft.-NoCover
MPN:E50075
Refrigerator Volume: 15 cu ft
Freezer Volume: 8 cu ft
Height: 10-1/2"
Length: 42"
Frigoboat, 380F-SS, Flat Evaporator with Stainless Steel Cover
Item #:533901-15cu.ft.-Cover
MPN:E52185
Refrigerator Volume: 15 cu ft
Freezer Volume: Not suggested
Height: 16-1/4"
Length: 40-1/4"
Frigoboat, 180F-SS, Flat Evaporator with Stainless Steel Cover
Item #:533901-10cu.ft.-Cover
MPN:E52105
Refrigerator Volume: 10 cu ft
Freezer Volume: Not recommended
Height: 12"
Length: 22"
