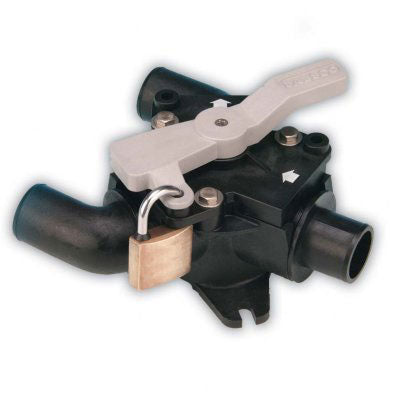

Jabsco, Y-Valve, Onboard Waste Management, Lockable, 45490 Series

Mfr: Jabsco
$89.46 On Sale

Jabsco, Y-Valve, Onboard Waste Management, Lockable, 45490-1000
SKU: 70547
Mfg# 45490-1000
LFS# JAB454901000
UNIT: Each
In Stock - Ships out in 1 Business Day


Jabsco, Y-Valve, Onboard Waste Management, Lockable, 45490 Series.

  • Chemical and corrosion resistant polypropylene and stainless steel construction
  • Selector lever can be padlocked (lock not included) and / or sealed in either position
  • Ports can be rotated so discharge plumbing can be routed away in parallel, at 90°, or in opposite directions, or either up or down without disassembly
  • Valve is supplied with both 1-1/2" (38 mm) ports (fitted) and extra 1" (25 mm) straight inlet port
  • Optional shaft extension allows valve to be mounted through a bulkhead up to 1-3/4" thick with only the selector handle exposed
  • Self cleaning design provides trouble free operation
  • Molded in flow direction indicator arrows
  • Easy access to three sturdy mounting feet for quick and simple installation
  • Easy access to valve by removal of just three hex head machine screws, top cover and diverter assembly lift away from the body
The Jabsco Y-Valve is designed to provide flexibility of onboard waste management by diverting waste either into an onboard holding tank or directly overboard where legal to do so. Check local and Federal regulations to determine where direct overboard discharge of untreated waste is permitted. No o(more...)



Ratings & Reviews

No reviews available

Be the first to Write a Review


Q: Does the visible arrow indicate the direction of flow? A: Yes, the arrows do indicate the direction of the discharge. The valve can also be locked into either position to meet Coast Gaurd regulations.
