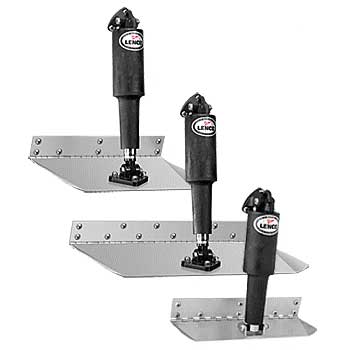

Lenco, Standard Electric Trim Tab Kits (9" x 9" to 12" x 40" Tabs) 12 Volt, w/o Switch

Mfr: LENCO MARINE, INC
$469.85 to $697.90
$469.85 to $697.90
Kits fit 14'-79' Boat Lengths.Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht.

  • Electro-Polished Blades
  • 12 or 14 Gauge - 304 Stainless Steel blades
  • 1" Turned up edges / 85 degree inside taper
  • Standard actuator w/ 5/16" SS bolts
  • 1/4" diameter hinge pin

Trim tab kits contain the following:

  • 2 ea of Stainless Steel electro-polished trim tab planes
  • 2 ea of # 15054-001 (std.) actuators with 6' lead & deutsch plugs
  • 2 ea of # 30133-103 20' actuator extension wiring harnesses
  • 2 ea of # 15085-001 (# 116) upper mounting bracket with gland seal
  • 2 ea of # 50014-001 (# 119) lower mounting bracket
  • All necessary mounting hardware
  • ALL trim tab kits are now shipped without switches. You will need to buy and fit a switch to complete installation

Lenco's ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco trim tabs are also oil-free and environmentally conscious.

Item #
MPN
Tab Length x Tab Width at Hinge
Boat Length
12" X 12" 12 Volt Trim Tab Kit (14 Ga) Without Switch
Item #:533480-12"x12"
MPN:15007-101
Tab Length x Tab Width at Hinge: 12" x 12"
Boat Length: 17'-30'
9" X 9" 12 Volt Trim Tab Kit (14 Ga) Without Switch
Item #:533480-9"x9"
MPN:15000-101
Tab Length x Tab Width at Hinge: 9" x 9"
Boat Length: 14'-18'
9" X 12" 12 Volt Trim Tab Kit (14 Ga) Without Switch
Item #:533480-9"x12"
MPN:15001-101
Tab Length x Tab Width at Hinge: 9" x 12"
Boat Length: 16'-25'
9" X 36" 12 Volt Trim Tab Kit (12 Ga) Without Switch
Item #:533480-9"x36"
MPN:15005-101
Tab Length x Tab Width at Hinge: 9" x 36"
Boat Length: 34'-65'
9" X 30" 12 Volt Trim Tab Kit (12 Ga) Without Switch
Item #:533480-9"x30"
MPN:15004-101
Tab Length x Tab Width at Hinge: 9" x 30"
Boat Length: 30'-50'
9" X 24" 12 Volt Trim Tab Kit (12 Ga) Without Switch
Item #:533480-9"x24"
MPN:15003-101
Tab Length x Tab Width at Hinge: 9" x 24"
Boat Length: 26'-40'
9" X 18" 12 Volt Trim Tab Kit (14 Ga) Without Switch
Item #:533480-9"x18"
MPN:15002-101
Tab Length x Tab Width at Hinge: 9" x 18"
Boat Length: 22'-30'
12" X 36" 12 Volt Trim Tab Kit (12 Ga) Without Switch
Item #:533480-12"x36"
MPN:15011-101
Tab Length x Tab Width at Hinge: 12" x 36"
Boat Length: 38'-69'
12" X 30" 12 Volt Trim Tab Kit (12 Ga) Without Switch
Item #:533480-12"x30"
MPN:15010-101
Tab Length x Tab Width at Hinge: 12" x 30"
Boat Length: 34'-54'
12" X 24" 12 Volt Trim Tab Kit (12 Ga) Without Switch
Item #:533480-12"x24"
MPN:15009-101
Tab Length x Tab Width at Hinge: 12" x 24"
Boat Length: 30'-44'
12" X 18" 12 Volt Trim Tab Kit (12 Ga) Without Switch
Item #:533480-12"x18"
MPN:15008-101
Tab Length x Tab Width at Hinge: 12" x 18"
Boat Length: 26'-36'
