DESCRIPTION

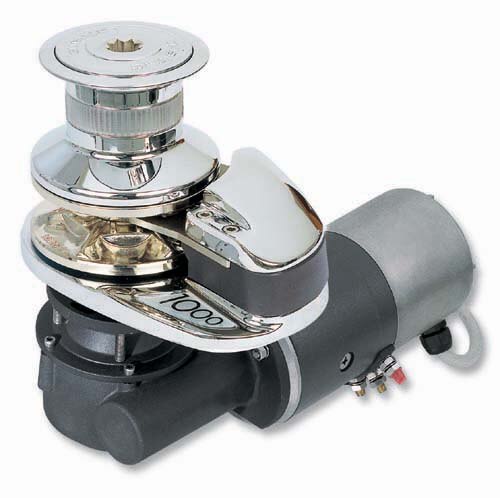

Lofrans Project 1000, Nickel Plated Vertical Windlass, Rope / Chain Management, 1,000 watt, 12 volt. The Project 1000 features a high torque series wound electric motor that delivers immediate lifting power and deployment speed. The Lofrans purpose built gearbox has a built in manual over-ride system in case an electrical problem were to arise. A clutch/over-ride handle to make clutch adjustments or to hand crank the ground tackle on-board in an emergency. Luxury chrome finish will enhance the look of any vessel.
- Rope/Chain Management System
- Watertight Control Box
- Two Covered foot switches
- Manual Override/Clutch Handle
- Contemporary styling looks great on any fore-deck
- Mirror-like finish is durable and corrosion resistant
- Main shaft and chain pipe holes are the same diameter and can be conveniently cut with hole saw
- Aft-facing stainless pressure finger ensure a smooth trouble-free transition from rope to chain during deployment and retrieval
- 52:1 gearbox ratio retrieves the ground tackle at a more efficient speed
- Payout at 105 ft/min
- One-Person Installation, the gearbox flange has a key lock to enable a single technician to mount the entire unit
- Topworks Styling:
Contemporary styling looks great on any foredeck - Chromed Bronze Topworks:
Mirror-like finish is durable and corrosion resistant - Simplified Installation:
Mainshaft and chainpipe holes are the same diameter and can be conveniently cut with hole saw - Finger Design:
Aft-facing stainless pressure finger ensure a smooth trouble-free transition from rope to chain during deployment and retrieval - High-Speed Gearbox:
52:1 gearbox ratio retrieves the ground tackle at a more efficient speed - Payout @105 ft/min
- One-Person Installation:
The gearbox flange has a keylock to enable a single technician to mount the entire unit (most windlasses require one person above deck and one below during installation)
| Name | Description |
|---|---|
| Motor Wattage | 1000W |
| Version | Capstan |
| Finish | Chromed Bronze |
| Working Load | 220 lbs (100kg) |
| Payout Speed | 105 ft./min. |
| Retrieval Speed @ No Load | 79 ft/min |
| Retrieval Speed @ Working Load | 52 ft/min |
| Amperes @ No Load | 70 |
| Max Deck Thickness | 1-9/16" (up to 2-3/4" w/4 optional deck studs - LWPDB003) |
| Rope Sizes | 9/16 in., 5/8 in. |
| Amperes @ Working Load | 110 |
| Approximate Ship Weight (lbs) | 55 |
