Description

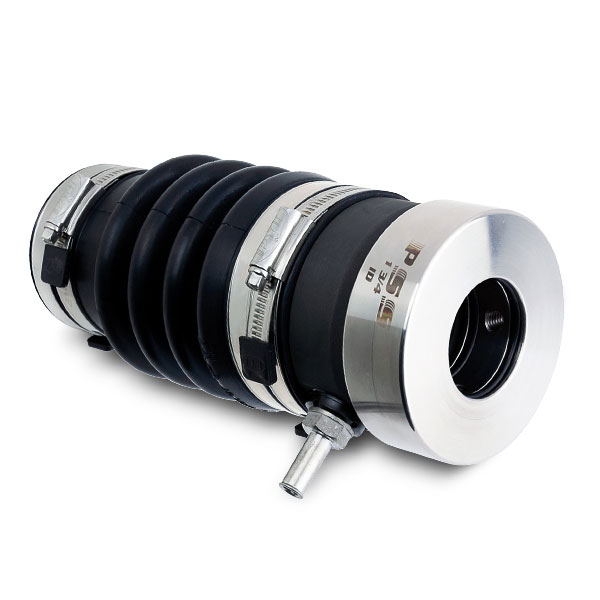

PSS Dripless Shaft Seal. Ideal upgrade replacement dripless shaft seal for sail or power boats. Constructed of long life marine materials.
- Size = Size of Shaft
- Diameter = Diameter of Stern Tube
- Dripless, maintenance-free, stuffing box replacement shaft seal
- Three year manufacturer guarantee
- A.B.S. approved
- Made in the USA
- Standard equipment on Alden Yachts, Wellcraft, Bayliner, Donzi Yachts, Ocean Alexander, and others
PSS Propeller Shaft Seals:

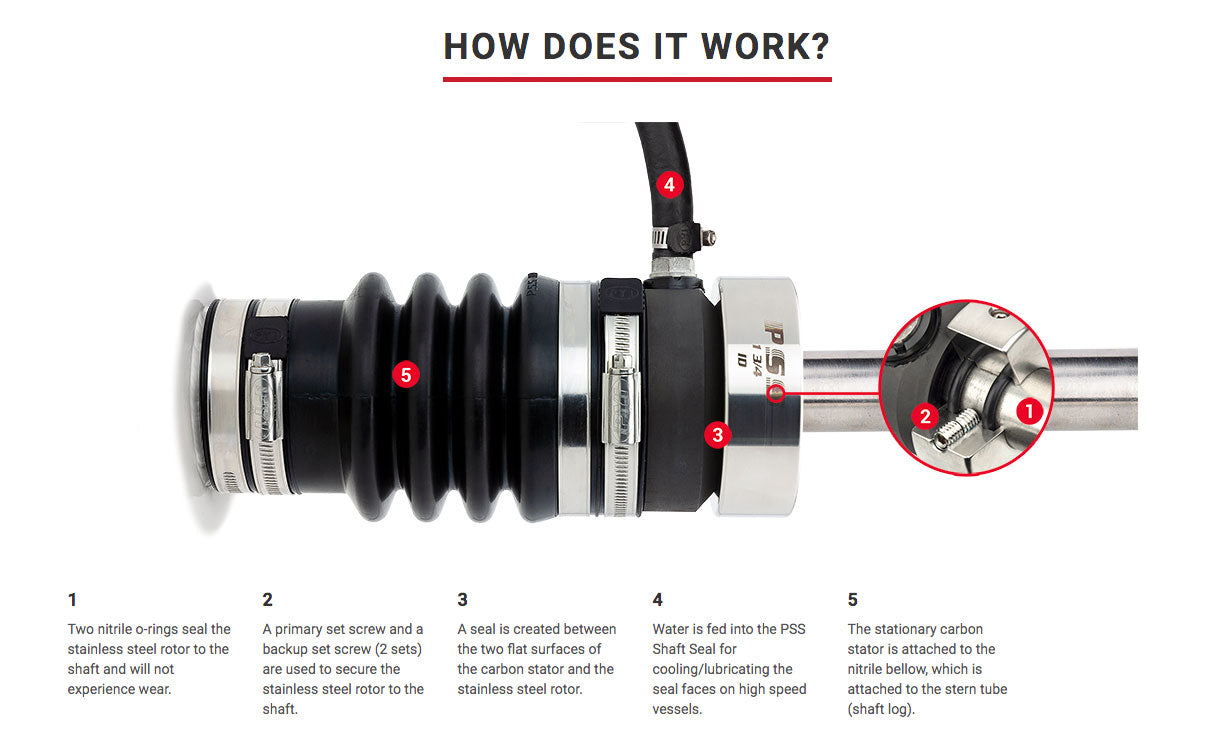

A mechanical seal is created by the contact of a turning surface against a stationary surface. In the case of the PSS Shaft Seal, the stationary surface is a carbon flange held in contact against a stainless steel rotor which turns with the shaft. The carbon flange is attached to the boat by a nitrile bellow which, with the help of water pressure, produces a constant contact between the carbon and the stainless steel ring. These type of seals are unaffected by engine motion or vibrations. The result is a 100% watertight and totally maintenance-free seal.
| Part # | Shaft Dia. (A) | Stern Tube Dia. (B) | Approx. Length (C) | Approx. Compression | Rotor Diameter (D) | Stern Cuff Length (E) |
|---|---|---|---|---|---|---|
| 02-20M-114 | 20mm | 1-1/4" to 1-3/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-20M-112 | 20mm | 1-1/2" to 1-5/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-20M-134 | 20mm | 1-3/4" to 1-7/8" | 6.75" | 3/4" | 2.375" | 1.5" |
| 02-20M-200 | 20mm | 2" to 2-1/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-20M-214 | 20mm | 2-1/4" to 2-3/8" | 6.75" | 3/4" | 2.375" | 1.5" |
| 02-20M-212 | 20mm | 2-1/2" to 2-5/8" | 7.38" | 3/4" | 2.375" | 1.5" |
| 02-22M-114 | 22mm | 1-1/4" to 1-3/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-22M-112 | 22mm | 1-1/2" to 1-5/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-22M-134 | 22mm | 1-3/4" to 1-7/8" | 6.75" | 3/4" | 2.375" | 1.5" |
| 02-22M-200 | 22mm | 2" to 2-1/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-22M-214 | 22mm | 2-1/4" to 2-3/8" | 6.75" | 3/4" | 2.375" | 1.5" |
| 02-22M-212 | 22mm | 2-1/2" to 2-5/8" | 7.38" | 3/4" | 2.375" | 1.5" |
| 02-25M-114 | 25mm | 1-1/4" to 1-3/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-25M-112 | 25mm | 1-1/2" to 1-5/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-25M-134 | 25mm | 1-3/4" to 1-7/8" | 6.75" | 3/4" | 2.375" | 1.5" |
| 02-25M-200 | 25mm | 2" to 2-1/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-25M-214 | 25mm | 2-1/4" to 2-3/8" | 6.75" | 3/4" | 2.375" | 1.5" |
| 02-25M-212 | 25mm | 2-1/2" to 2-5/8" | 7.375" | 3/4" | 2.375" | 1.5" |
| 02-28M-114 | 28mm | 1-1/4" to 1-3/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-28M-112 | 28mm | 1-1/2" to 1-5/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-28M-134 | 28mm | 1-3/4" to 1-7/8" | 6.75" | 3/4" | 2.375" | 1.5" |
| 02-28M-200 | 28mm | 2" to 2-1/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-28M-214 | 28mm | 2-1/4" to 2-3/8" | 6.75" | 3/4" | 2.375" | 1.5" |
| 02-28M-212 | 28mm | 2-1/2" to 2-5/8" | 7.375" | 3/4" | 2.375" | 1.5" |
| 02-30M-114 | 30mm | 1-1/4" to 1-3/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-30M-112 | 30mm | 1-1/2" to 1-5/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-30M-134 | 30mm | 1-3/4" to 1-7/8" | 6.75" | 3/4" | 2.375" | 1.5" |
| 02-30M-200 | 30mm | 2" to 2-1/8" | 6.875" | 3/4" | 2.375" | 1.5" |
| 02-30M-214 | 30mm | 2-1/4" to 2-3/8" | 6.75" | 3/4" | 2.375" | 1.5" |
| 02-30M-212 | 30mm | 2-1/2" to 2-5/8" | 7.375" | 3/4" | 2.375" | 1.5" |
| 02-32M-134 | 32mm | 1-3/4" to 1-7/8" | 7.5" | 3/4" | 2.875" | 1.5" |
| 02-32M-200 | 32mm | 2" to 2-1/8" | 7.375" | 3/4" | 2.875" | 1.5" |
| 02-32M-214 | 32mm | 2-1/4" to 2-3/8" | 7.5" | 3/4" | 2.875" | 1.5" |
| 02-32M-212 | 32mm | 2-1/2" to 2-5/8" | 7.375" | 3/4" | 2.875" | 1.5" |
| 02-32M-234 | 32mm | 2-3/4" to 2-7/8" | 8.875" | 3/4" | 2.875" | 2" |
| 02-32M-300 | 32mm | 3" to 3-1/8" | 8.875" | 3/4" | 2.875" | 2" |
| 02-32M-314 | 32mm | 3-1/4" to 3-3/8" | 9.06" | 3/4" | 2.875" | 2" |
| 02-32M-312 | 32mm | 3-1/2" to 3-5/8" | 8.88" | 3/4" | 2.875" | 2" |
| 02-35M-134 | 35mm | 1-3/4" to 1-7/8" | 7.5" | 3/4" | 2.875" | 1.5" |
| 02-35M-200 | 35mm | 2" to 2-1/8" | 7.375" | 3/4" | 2.875" | 1.5" |
| 02-35M-214 | 35mm | 2-1/4" to 2-3/8" | 7.5" | 3/4" | 2.875" | 1.5" |
| 02-35M-212 | 35mm | 2-1/2" to 2-5/8" | 7.375" | 3/4" | 2.875" | 1.5" |
| 02-35M-234 | 35mm | 2-3/4" to 2-7/8" | 8.875" | 3/4" | 2.875" | 2" |
| 02-35M-300 | 35mm | 3" to 3-1/8" | 8.875" | 3/4" | 2.875" | 2" |
| 02-35M-314 | 35mm | 3-1/4" to 3-3/8" | 9.06" | 3/4" | 2.875" | 2" |
| 02-35M-312 | 35mm | 3-1/2" to 3-5/8" | 8.88" | 3/4" | 2.875" | 2" |
| 02-38M-200 | 38mm | 2" to 2-1/8" | 9.155" | 1" | 3.75" | 2" |
| 02-38M-214 | 38mm | 2-1/4" to 2-1/8" | 9.155" | 1" | 3.75" | 2" |
| 02-38M-212 | 38mm | 2-1/2" to 2-5/8" | 9.03" | 1" | 3.75" | 2" |
| 02-38M-234 | 38mm | 2-3/4" to 2-7/8" | 9.2175" | 1" | 3.75" | 2" |
| 02-38M-300 | 38mm | 3" to 3-1/8" | 9.03" | 1" | 3.75" | 2" |
| 02-38M-314 | 38mm | 3-1/4" to 3-3/8" | 9.2175" | 1" | 3.75" | 2" |
| 02-38M-312 | 38mm | 3-1/2" to 3-5/8" | 9.03" | 1" | 3.75" | 2" |
| 02-38M-334 | 38mm | 3-3/4" to 3-7/8" | 9.405" | 1" | 3.75" | 2" |
| 02-38M-400 | 38mm | 4" to 4-1/8" | 9.405" | 1" | 3.75" | 2" |
| 02-40M-200 | 40mm | 2" to 2-1/8" | 9.155" | 1" | 3.75" | 2" |
| 02-40M-214 | 40mm | 2-1/4" to 2-3/8" | 9.155" | 1" | 3.75" | 2" |
| 02-40M-212 | 40mm | 2-1/2" to 2-5/8" | 9.03" | 1" | 3.75" | 2" |
| 02-40M-234 | 40mm | 2-3/4" to 2-7/8" | 9.2175" | 1" | 3.75" | 2" |
| 02-40M-300 | 40mm | 3" to 3-1/8" | 9.03" | 1" | 3.75" | 2" |
| 02-40M-314 | 40mm | 3-1/4" to 3-3/8" | 9.2175" | 1" | 3.75" | 2" |
| 02-40M-312 | 40mm | 3-1/2" to 3-5/8" | 9.03" | 1" | 3.75" | 2" |
| 02-40M-334 | 40mm | 3-3/4" to 3-7/8" | 9.405" | 1" | 3.75" | 2" |
| 02-40M-400 | 40mm | 4" to 4-1/8" | 9.405" | 1" | 3.75" | 2" |
| 02-45M-214 | 45mm | 2-1/4" to 2-3/8" | 9.155" | 1" | 3.75" | 2" |
| 02-45M-212 | 45mm | 2-1/2" to 2-5/8" | 9.03" | 1" | 3.75" | 2" |
| 02-45M-234 | 45mm | 2-3/4" to 2-7/8" | 9.2175" | 1" | 3.75" | 2" |
| 02-45M-300 | 45mm | 3" to 3-1/8" | 9.03" | 1" | 3.75" | 2" |
| 02-45M-314 | 45mm | 3-1/4" to 3-3/8" | 9.2175" | 1" | 3.75" | 2" |
| 02-45M-312 | 45mm | 3-1/2" to 3-5/8" | 9.03" | 1" | 3.75" | 2" |
| 02-45M-334 | 45mm | 3-3/4" to 3-7/8" | 9.405" | 1" | 3.75" | 2" |
| 02-45M-400 | 45mm | 4" to 4-1/8" | 9.405" | 1" | 3.75" | 2" |
| 02-50M-212 | 50mm | 4" to 4-1/8" | 9.03" | 1" | 3.75" | 2" |
| 02-50M-234 | 50mm | 2-3/4" to 2-7/8" | 9.2175" | 1" | 3.75" | 2" |
| 02-50M-300 | 50mm | 3" to 3-1/8" | 9.03" | 1" | 3.75" | 2" |
| 02-50M-314 | 50mm | 3-1/4" to 3-3/8" | 9.2175" | 1" | 3.75" | 2" |
| 02-50M-312 | 50mm | 3-1/2" to 3-5/8" | 9.03" | 1" | 3.75" | 2" |
| 02-50M-334 | 50mm | 3-3/4" to 3-7/8" | 9.405" | 1" | 3.75" | 2" |
| 02-50M-400 | 50mm | 4" to 4-1/8" | 9.405" | 1" | 3.75" | 2" |
| 02-55M-212 | 55mm | 2-1/2" to 2-5/8" | 9.03" | 1" | 3.75" | 2" |
| 02-55M-234 | 55mm | 2-3/4" to 2-7/8" | 9.2175" | 1" | 3.75" | 2" |
| 02-55M-300 | 55mm | 3" to 3-1/8" | 9.03" | 1" | 3.75" | 2" |
| 02-55M-314 | 55mm | 3-1/4" to 3-3/8" | 9.2175" | 1" | 3.75" | 2" |
| 02-55M-312 | 55mm | 3-1/2" to 3-5/8" | 9.03" | 1" | 3.75" | 2" |
| 02-55M-334 | 55mm | 3-3/4" to 3-7/8" | 9.405" | 1" | 3.75" | 2" |
| 02-55M-400 | 55mm | 4" to 3-1/8" | 9.405" | 1" | 3.75" | 2" |
| 02-60M-314 | 60mm | 3-1/4" to 3-3/8" | 9.625" | 1" | 4.2" | 2" |
| 02-60M-312 | 60mm | 3-1/2" to 3-5/8" | 9.625" | 1" | 4.2" | 2" |
| 02-60M-334 | 60mm | 3-3/4" to 3-7/8" | 9.625" | 1" | 4.2" | 2" |
| 02-60M-400 | 60mm | 4" to 4-1/8" | 9.625" | 1" | 4.2" | 2" |
| 02-60M-414 | 60mm | 4-1/4" to 4-3/8" | 10.25" | 1" | 4.2" | 2.5" |
| 02-60M-412 | 60mm | 4-1/2" to 4-5/8" | 10.25" | 1" | 4.2" | 2.5" |
| 02-60M-434 | 60mm | 4-3/4" to 4-7/8" | 10.25" | 1" | 4.2" | 2.5" |
| 02-60M-500 | 60mm | 5" to 5-1/8" | 10.25" | 1" | 4.2" | 2.5" |
| 02-65M-314 | 65mm | 3-1/4" to 3-3/8" | 9.625" | 1" | 4.2" | 2" |
| 02-65M-312 | 65mm | 3-1/2" to 3-5/8" | 9.625" | 1" | 4.2" | 2" |
| 02-65M-334 | 65mm | 3-3/4" to 3-7/8" | 9.625" | 1" | 4.2" | 2" |
| 02-65M-400 | 65mm | 4" to 4-1/8" | 9.625" | 1" | 4.2" | 2" |
| 02-65M-414 | 65mm | 4-1/4" to 4-3/8" | 10.25" | 1" | 4.2" | 2.5" |
| 02-65M-412 | 65mm | 4-1/2" to 4-5/8" | 10.25" | 1" | 4.2" | 2.5" |
| 02-65M-434 | 65mm | 4-3/4" to 4-7/8" | 10.25" | 1" | 4.2" | 2.5" |
| 02-65M-500 | 65mm | 5" to 5-1/8" | 10.25" | 1" | 4.2" | 2.5" |
| 02-70M-400 | 70mm | 4" to 4-1/8" | 10.3125" | 1" | 5" | 2.5" |
| 02-70M-414 | 70mm | 4-1/4" to 4-3/8" | 10.3125" | 1" | 5" | 2.5" |
| 02-70M-412 | 70mm | 4-1/2" to 4-5/8" | 10.125" | 1" | 5" | 2.5" |
| 02-70M-434 | 70mm | 4-3/4" to 4-7/8" | 10.3125" | 1" | 5" | 2.5" |
| 02-70M-500 | 70mm | 5" to 5-1/8" | 10.125" | 1" | 5" | 2.5" |
| 02-70M-514 | 70mm | 5-1/4" to 5-3/8" | 10.25" | 1" | 5" | 2.5" |
| 02-70M-512 | 70mm | 5-1/2" to 5-5/8" | 10.25" | 1" | 5" | 2.5" |
| 02-70M-534 | 70mm | 5-3/4" to 5-7/8" | 10.25" | 1" | 5" | 2.5" |
| 02-70M-600 | 70mm | 6" to 6-1/8" | 10.25" | 1" | 5" | 2.5" |
| 02-75M-400 | 75mm | 4" to 4-1/8" | 10.3125" | 1" | 5" | 2.5" |
| 02-75M-414 | 75mm | 4-1/4" to 4-3/8" | 10.3125" | 1" | 5" | 2.5" |
| 02-75M-412 | 75mm | 4-1/2" to 4-5/8" | 10.125" | 1" | 5" | 2.5" |
| 02-75M-434 | 75mm | 4-3/4" to 4-7/8" | 10.3125" | 1" | 5" | 2.5" |
| 02-75M-500 | 75mm | 5" to 5-1/8" | 10.125" | 1" | 5" | 2.5" |
| 02-75M-514 | 75mm | 5-1/4" to 5-3/8" | 10.25" | 1" | 5" | 2.5" |
| 02-75M-512 | 75mm | 5-1/2" to 5-5/8" | 10.4375" | 1" | 5" | 2.5" |
| 02-75M-534 | 75mm | 5-3/4" to 5-7/8" | 10.25" | 1" | 5" | 2.5" |
| 02-75M-600 | 80mm | 6" to 6-1/8" | 10.25" | 1" | 5" | 2.5" |
| 02-80M-400 | 80mm | 4" to 4-1/8" | 10.3125" | 1" | 5" | 2.5" |
| 02-80M-414 | 80mm | 4-1/4" to 4-3/8" | 10.3125" | 1" | 5" | 2.5" |
| 02-80M-412 | 80mm | 4-1/2" to 4-5/8" | 10.3125" | 1" | 5" | 2.5" |
| 02-80M-434 | 80mm | 4-3/4" to 4-7/8" | 10.3125" | 1" | 5" | 2.5" |
| 02-80M-500 | 80mm | 5" to 5-1/8" | 10.125" | 1" | 5" | 2.5" |
| 02-80M-514 | 80mm | 5-1/4" to 5-3/8" | 10.25" | 1" | 5" | 2.5" |
| 02-80M-512 | 80mm | 5-1/2" to 5-5/8" | 10.4375" | 1" | 5" | 2.5" |
| 02-80M-534 | 80mm | 5-3/4" to 5-7/8" | 10.25" | 1" | 5" | 2.5" |
| 02-80M-600 | 80mm | 6" to 6-1/8" | 10.25" | 1" | 5" | 2.5" |
| 02-85M-415 | 85mm | 4-1/2" to 4-5/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-85M-434 | 85mm | 4-3/4" to 4-7/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-85M-500 | 85mm | 5" to 5-1/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-85M-514 | 85mm | 5-1/4" to 5-3/8" | 10.675" | 1" | 6" | 2.5" |
| 02-85M-512 | 85mm | 5-1/2" to 5-5/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-85M-534 | 85mm | 5-3/4" to 5-7/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-85M-600 | 85mm | 6" to 6-1/8" | 10.675" | 1" | 6" | 2.5" |
| 02-90M-412 | 90mm | 4-1/2" to 4-5/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-90M-434 | 90mm | 4-3/4" to 4-7/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-90M-500 | 90mm | 5" to 5-1/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-90M-514 | 90mm | 5-1/4" to 5-3/8" | 10.675" | 1" | 6" | 2.5" |
| 02-90M-512 | 90mm | 5-1/2" to 5-5/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-90M-534 | 90mm | 5-3/4" to 5-7/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-90M-600 | 90mm | 6" to 6-1/8" | 10.675" | 1" | 6" | 2.5" |
| 02-95M-412 | 95mm | 4-1/2" to 4-5/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-95M-434 | 95mm | 4-3/4" to 4-7/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-95M-500 | 95mm | 5-1/8" to 5-1/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-95M-514 | 95mm | 5-1/4" to 5-3/8" | 10.675" | 1" | 6" | 2.5" |
| 02-95M-512 | 95mm | 5-1/2" to 5-5/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-95M-534 | 95mm | 5-3/4" to 5-7/8" | 10.8625" | 1" | 6" | 2.5" |
| 02-95M-600 | 95mm | 6" to 6-1/8" | 10.675" | 1" | 6" | 2.5" |
