Sea-Fire FM-200 Automatic & Manual/Automatic Fire Extinguishers, FD Series

Mfr: SEA-FIRE
$524.05 to $4,025.93
$524.05 to $4,025.93

Sea-Fire FM-200 agent USCG approved FD Fire Suppression Systems protect enclosed compartments. All FD systems operate automatically through heat activation. Discharge will occur when the sensor valve temperature rises to the system activation point as shown on the label attached to each unit.

Systems with a manual designation provide boat operators the option to activate the fire control system on demand.

Sea-Fire FM-200 FD extinguishing systems are designed to induce minimum atmospheric concentration of 8.7% within the protected compartment. Available for spaces from 150 to 1,500 cubic feet to fit most marine vessel engine compartments.

  • For gasoline and diesel powered craft
  • Tested to -40 Deg.
  • Corrosion resistant aluminum cylinders and valves
  • 100% leak-tested

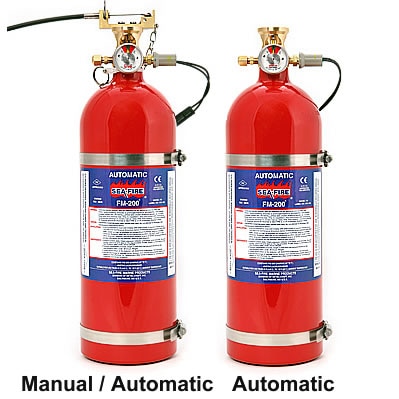

  • Available in automatic or auto/manual configurations
  • Auto/Man configured fire extinguishers require a
  • Factory refillable
  • Three year manufacturer warranty
  • Sea-Fire FD series extinguishers are equipped with a factory installed pressure switch which is intended for cylinder pressure supervision and may also be used to control other electrical functions (engine shutdown, air exchange equipment, etc.)
  • Install: Each FD & FG system comes complete with marine approved brackets, face plate, and installation manual. All items are included in shipment
  • Diesel Engine Craft will be required to install an

How to select the proper fire extinguisher for your application:

  1. Determine the volume of the enclosure in cubic feet. Measure: Length x Width x Height (L x W x H), taking into consideration the curvature of the hull.
  2. Select an automatic ("A") or manual/automatic ("M") model that meets or exceeds the calculated volume of the engine compartment.

Vertical and Horizontal Mounting:

  • ALL FG models are approved for vertical or horizontal mounting
  • FD 150 - FD 1000 models are approved for vertical or horizontal mounting
  • FD 1050 - FD 1500 models must be installed VERTICAL ONLY

    Approvals/Certifications:

  • CE (PED and/or TPED) - (Certified European)
  • DNV - (Det Norske Veritas)
  • FM - (Factory Mutual Global)
  • GL - (Germanischer Lloyd)
  • HKFSD - (Hong Kong Fire Services Department)
  • Maritime New Zealand
  • RINA - (Registro Italia no Navale)
  • SAMSA - (South African Maritime Safety Authority)
  • TC - (Transport Canada)
  • USCG - (United States Coast Guard)
  • U.S. DOT - (United States Department of Transportation)

Shipping Restrictions:
· Cannot be shipped by USPS
· International Shipments require a shipping quote that will be sent to you for approval prior to product shipment
· Australian Regulations prevent shipment of this product to Australia

What is FM-200?

DuPont FM-200 is accepted and respected worldwide, with a history of protecting some of the world's most critical and irreplaceable assets. In fact, FM-200 is in use in over one hundred thousand applications in more than 70 nations.

Many fire suppression systems can cause major damage to Ð and even destroy Ð the very things they are supposed to protect. You're looking to avoid damage Ð not cause it. You're looking to reduce downtime Ð not lengthen it. You want a fire suppression system that deploys quickly and cleanly and won't leave behind oily residue, particulate, or water. FM-200 fire suppressant stops fires fast. When you consider the potentially devastating environmental effects of an uncontrolled fire, it's easy to see that an FM-200 system is an important part of an environmentally responsible fire suppression solution.

FM-200 systems reach extinguishing levels in 10 seconds or less, stopping ordinary combustible, electrical, and flammable liquid fires before they cause significant damage. That's the fastest fire protection available, period. When fire is extinguished this quickly, it means less damage, lower repair costs, and an extra margin of safety for people. It also means less downtime and disruption of business.

FM-200 fire suppressant can be safely used where people are present.

In applications where space is at a premium, FM-200 fire suppression systems are the superior choice. The FM-200 agent is stored in cylinders as a liquid and pressurized with nitrogen, saving huge amounts of storage space. In fact, for the same amount of protection, FM-200 systems take up to seven times less storage space than systems based on CO2 and inert gases.

There's no substitute for genuine DuPont FM-200 waterless fire protection.

Sea-Fire was the first fire extinguisher manufacturer to utilize the renowned FM-200 agent for marine applications. FM-200 is the most accepted and safest extinguishing agent on the market. FM-200 is safe for use in occupied spaces and engine compartments, it is the same compound used in pharmaceutical asthma inhalers. FM-200 is electrically nonconductive, residual free and will not cause thermal shock damage. It is also environmentally safe; it is accepted under the U.S. EPA's Significant New Alternatives Policy and is an accepted replacement for products banned under the Montreal Protocol. FM-200 has zero ozone depletion potential and is recoverable and recyclable at the end of its useful service life.

INSTALLATION INSTRUCTIONS & OWNER’S MANUAL

Item #
MPN
Type
Max. Volume of Protection
Diameter x Height
Weight
FD1000A FM-200 Fire Extinguisher
Item # : 533643-Auto-1000cu.ft.
MPN : FD 1000 A
Type : Auto
Max. Volume of Protection : 1,000 cu. ft.
Diameter x Height : 8" x 32.25" (203 x 819mm)
Weight : 69 lbs
FD325A FM-200 Fire Extinguisher
Item # : 533643-Auto-325cu.ft.
MPN : FD 325 A
Type : Auto
Max. Volume of Protection : 325 cu. ft.
Diameter x Height : 6.9" x 18.25" (175 x 464mm)
Weight : 28.4 lbs
FD300A FM-200 Fire Extinguisher
Item # : 533643-Auto-300cu.ft.
MPN : FD 300 A
Type : Auto
Max. Volume of Protection : 300 cu. ft.
Diameter x Height : 6.9" x 18.25" (175 x 464mm)
Weight : 27.4 lbs
FD275A FM-200 Fire Extinguisher
Item # : 533643-Auto-275cu.ft.
MPN : FD 275 A
Type : Auto
Max. Volume of Protection : 275 cu. ft.
Diameter x Height : 6.9" x 18.25" (175 x 464mm)
Weight : 26.3 lbs
FD250A FM-200 Fire Extinguisher
Item # : 533643-Auto-250cu.ft.
MPN : FD 250 A
Type : Auto
Max. Volume of Protection : 250 cu. ft.
Diameter x Height : 6.9" x 18.25" (175 x 464mm)
Weight : 25.2 lbs
FD225A FM-200 Fire Extinguisher
Item # : 533643-Auto-225cu.ft.
MPN : FD 225 A
Type : Auto
Max. Volume of Protection : 225 cu. ft.
Diameter x Height : 5.2" x 18.75" (132 x 476mm)
Weight : 24.1 lbs
FD200A FM-200 Fire Extinguisher
Item # : 533643-Auto-200cu.ft.
MPN : FD 200 A
Type : Auto
Max. Volume of Protection : 200 cu. ft.
Diameter x Height : 5.2" x 18.75" (132 x 476mm)
Weight : 19.6 lbs
FD175A FM-200 Fire Extinguisher
Item # : 533643-Auto-175cu.ft.
MPN : FD 175 A
Type : Auto
Max. Volume of Protection : 175 cu. ft.
Diameter x Height : 5.2" x 18.75" (132 x 476mm)
Weight : 18.5 lbs
FD150A FM-200 Fire Extinguisher
Item # : 533643-Auto-150cu.ft.
MPN : FD 150 A
Type : Auto
Max. Volume of Protection : 150 cu. ft.
Diameter x Height : 5.2" x 18.75" (132 x 476mm)
Weight : 17.4 lbs
FD700A FM-200 Fire Extinguisher
Item # : 533643-Auto-700cu.ft.
MPN : FD 700 A
Type : Auto
Max. Volume of Protection : 700 cu. ft.
Diameter x Height : 8" x 27.50" (203 x 699mm)
Weight : 51.1 lbs
FD650A FM-200 Fire Extinguisher
Item # : 533643-Auto-650cu.ft.
MPN : FD 650 A
Type : Auto
Max. Volume of Protection : 650 cu. ft.
Diameter x Height : 8" x 27.50" (203 x 699mm)
Weight : 48.9 lbs
FD600A FM-200 Fire Extinguisher
Item # : 533643-Auto-600cu.ft.
MPN : FD 600 A
Type : Auto
Max. Volume of Protection : 600 cu. ft.
Diameter x Height : 6.9" x 26.75" (175 x 679mm)
Weight : 46.8
FD550A FM-200 Fire Extinguisher
Item # : 533643-Auto-550cu.ft.
MPN : FD 550 A
Type : Auto
Max. Volume of Protection : 550 cu. ft.
Diameter x Height : 6.9" x 26.75" (175 x 679mm)
Weight : 44.6 lbs
FD500A FM-200 Fire Extinguisher
Item # : 533643-Auto-500cu.ft.
MPN : FD 500 A
Type : Auto
Max. Volume of Protection : 500 cu. ft.
Diameter x Height : 6.9" x 23" (175 x 584mm)
Weight : 42.5 lbs
FD450A FM-200 Fire Extinguisher
Item # : 533643-Auto-450cu.ft.
MPN : FD 450 A
Type : Auto
Max. Volume of Protection : 450 cu. ft.
Diameter x Height : 6.9" x 23" (175 x 584mm)
Weight : 39.6 lbs
FD400A FM-200 Fire Extinguisher
Item # : 533643-Auto-400cu.ft.
MPN : FD 400 A
Type : Auto
Max. Volume of Protection : 400 cu. ft.
Diameter x Height : 6.9" x 23" (175 x 584mm)
Weight : 37.4 lbs
FD350A FM-200 Fire Extinguisher
Item # : 533643-Auto-350cu.ft.
MPN : FD 350 A
Type : Auto
Max. Volume of Protection : 350 cu. ft.
Diameter x Height : 6.9" x 18.25" (175 x 464mm)
Weight : 35.5 lbs
FD1100M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1100cu.ft.
MPN : FD 1100 M
Type : Auto/Man
Max. Volume of Protection : 1,100 cu. ft.
Diameter x Height : 10" x 26" (254 x 660mm)
Weight : 109.1 lbs
FD1050M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1050cu.ft.
MPN : FD 1050 M
Type : Auto/Man
Max. Volume of Protection : 1,050 cu. ft.
Diameter x Height : 10" x 26" (254 x 660mm)
Weight : 107 lbs
FD1000M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1000cu.ft.
MPN : FD 1000 M
Type : Auto/Man
Max. Volume of Protection : 1,000 cu. ft.
Diameter x Height : 8" x 32.25" (203 x 819mm)
Weight : 69 lbs
FD950A FM-200 Fire Extinguisher
Item # : 533643-Auto-950cu.ft.
MPN : FD 950 A
Type : Auto
Max. Volume of Protection : 950 cu. ft.
Diameter x Height : 8" x 32.25" (203 x 819mm)
Weight : 66.8 lbs
FD900A FM-200 Fire Extinguisher
Item # : 533643-Auto-900cu.ft.
MPN : FD 900 A
Type : Auto
Max. Volume of Protection : 900 cu. ft.
Diameter x Height : 8" x 32.25" (203 x 819mm)
Weight : 64.7 lbs
FD850A FM-200 Fire Extinguisher
Item # : 533643-Auto-850cu.ft.
MPN : FD 850 A
Type : Auto
Max. Volume of Protection : 850 cu. ft.
Diameter x Height : 8" x 32.25" (203 x 819mm)
Weight : 62.5 lbs
FD800A FM-200 Fire Extinguisher
Item # : 533643-Auto-800cu.ft.
MPN : FD 800 A
Type : Auto
Max. Volume of Protection : 800 cu. ft.
Diameter x Height : 8" x 27.50" (203 x 699mm)
Weight : 60.3 lbs
FD750A FM-200 Fire Extinguisher
Item # : 533643-Auto-750cu.ft.
MPN : FD 750 A
Type : Auto
Max. Volume of Protection : 750 cu. ft.
Diameter x Height : 8" x 27.50" (203 x 699mm)
Weight : 58.2 lbs
FD1500M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1500cu.ft.
MPN : FD 1500 M
Type : Auto/Man
Max. Volume of Protection : 1,500 cu. ft.
Diameter x Height : 10" x 26" (254 x 660mm)
Weight : 126.5 lbs
FD1450M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1450cu.ft.
MPN : FD 1450 M
Type : Auto/Man
Max. Volume of Protection : 1,450 cu. ft.
Diameter x Height : 10" x 26" (254 x 660mm)
Weight : 124.3 lbs
FD1400M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1400cu.ft.
MPN : FD 1400 M
Type : Auto/Man
Max. Volume of Protection : 1,400 cu. ft.
Diameter x Height : 10" x 26" (254 x 660mm)
Weight : 122.1 lbs
FD1350M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1350cu.ft.
MPN : FD 1350 M
Type : Auto/Man
Max. Volume of Protection : 1,350 cu. ft.
Diameter x Height : 10" x 26" (254 x 660mm)
Weight : 120 lbs
FD1300M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1300cu.ft.
MPN : FD 1300 M
Type : Auto/Man
Max. Volume of Protection : 1,300 cu. ft.
Diameter x Height : 10" x 26" (254 x 660mm)
Weight : 117.8 lbs
FD1250M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1250cu.ft.
MPN : FD 1250 M
Type : Auto/Man
Max. Volume of Protection : 1,250 cu. ft.
Diameter x Height : 10" x 26" (254 x 660mm)
Weight : 115.6 lbs
FD1200M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1200cu.ft.
MPN : FD 1200 M
Type : Auto/Man
Max. Volume of Protection : 1,200 cu. ft.
Diameter x Height : 10" x 26" (254 x 660mm)
Weight : 113.5 lbs
FD1150M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-1150cu.ft.
MPN : FD 1150 M
Type : Auto/Man
Max. Volume of Protection : 1,150 cu. ft.
Diameter x Height : 10" x 26" (254 x 660mm)
Weight : 111.3 lbs
FD350M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-350cu.ft.
MPN : FD 350 M
Type : Auto/Man
Max. Volume of Protection : 350 cu. ft.
Diameter x Height : 6.9" x 18.25" (175 x 464mm)
Weight : 35.5 lbs
FD325M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-325cu.ft.
MPN : FD 325 M
Type : Auto/Man
Max. Volume of Protection : 325 cu. ft.
Diameter x Height : 6.9" x 18.25" (175 x 464mm)
Weight : 28.4 lbs
FD300M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-300cu.ft.
MPN : FD 300 M
Type : Auto/Man
Max. Volume of Protection : 300 cu. ft.
Diameter x Height : 6.9" x 18.25" (175 x 464mm)
Weight : 27.4 lbs
FD275M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-275cu.ft.
MPN : FD 275 M
Type : Auto/Man
Max. Volume of Protection : 275 cu. ft.
Diameter x Height : 6.9" x 18.25" (175 x 464mm)
Weight : 26.3 lbs
FD250M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-250cu.ft.
MPN : FD 250 M
Type : Auto/Man
Max. Volume of Protection : 250 cu. ft.
Diameter x Height : 6.9" x 18.25" (175 x 464mm)
Weight : 25.2 lbs
FD200M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-200cu.ft.
MPN : FD 200 M
Type : Auto/Man
Max. Volume of Protection : 200 cu. ft.
Diameter x Height : 5.2" x 18.75" (132 x 476mm)
Weight : 19.6 lbs
FD175M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-175cu.ft.
MPN : FD 175 M
Type : Auto/Man
Max. Volume of Protection : 175 cu. ft.
Diameter x Height : 5.2" x 18.75" (132 x 476mm)
Weight : 18.5 lbs
FD150M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-150cu.ft.
MPN : FD 150 M
Type : Auto/Man
Max. Volume of Protection : 150 cu. ft.
Diameter x Height : 5.2" x 18.75" (132 x 476mm)
Weight : 17.4 lbs
FD750M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-750cu.ft.
MPN : FD 750 M
Type : Auto/Man
Max. Volume of Protection : 750 cu. ft.
Diameter x Height : 8" x 27.50" (203 x 699mm)
Weight : 58.2 lbs
FD700M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-700cu.ft.
MPN : FD 700 M
Type : Auto/Man
Max. Volume of Protection : 700 cu. ft.
Diameter x Height : 8" x 27.50" (203 x 699mm)
Weight : 51.1 lbs
FD650M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-650cu.ft.
MPN : FD 650 M
Type : Auto/Man
Max. Volume of Protection : 650 cu. ft.
Diameter x Height : 8" x 27.50" (203 x 699mm)
Weight : 48.9 lbs
FD600M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-600cu.ft.
MPN : FD 600 M
Type : Auto/Man
Max. Volume of Protection : 600 cu. ft.
Diameter x Height : 6.9" x 26.75" (175 x 679mm)
Weight : 46.8
FD550M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-550cu.ft.
MPN : FD 550 M
Type : Auto/Man
Max. Volume of Protection : 550 cu. ft.
Diameter x Height : 6.9" x 26.75" (175 x 679mm)
Weight : 44.6 lbs
FD500M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-500cu.ft.
MPN : FD 500 M
Type : Auto/Man
Max. Volume of Protection : 500 cu. ft.
Diameter x Height : 6.9" x 23" (175 x 584mm)
Weight : 42.5 lbs
FD450M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-450cu.ft.
MPN : FD 450 M
Type : Auto/Man
Max. Volume of Protection : 450 cu. ft.
Diameter x Height : 6.9" x 23" (175 x 584mm)
Weight : 39.6 lbs
FD400M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-400cu.ft.
MPN : FD 400 M
Type : Auto/Man
Max. Volume of Protection : 400 cu. ft.
Diameter x Height : 6.9" x 23" (175 x 584mm)
Weight : 37.4 lbs
FD950M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-950cu.ft.
MPN : FD 950 M
Type : Auto/Man
Max. Volume of Protection : 950 cu. ft.
Diameter x Height : 8" x 32.25" (203 x 819mm)
Weight : 66.8 lbs
FD900M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-900cu.ft.
MPN : FD 900 M
Type : Auto/Man
Max. Volume of Protection : 900 cu. ft.
Diameter x Height : 8" x 32.25" (203 x 819mm)
Weight : 64.7 lbs
FD850M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-850cu.ft.
MPN : FD 850 M
Type : Auto/Man
Max. Volume of Protection : 850 cu. ft.
Diameter x Height : 8" x 32.25" (203 x 819mm)
Weight : 62.5 lbs
FD800M FM-200 Fire Extinguisher
Item # : 533643-Auto/Man-800cu.ft.
MPN : FD 800 M
Type : Auto/Man
Max. Volume of Protection : 800 cu. ft.
Diameter x Height : 8" x 27.50" (203 x 699mm)
Weight : 60.3 lbs

Ratings & Reviews

No reviews available

Be the first to Write a Review

Fire extinguishers are filled to order and are non-returnable.


Shipping Restrictions:
· Cannot be shipped by USPS
· International Shipments require a shipping quote that will be sent to you for approval prior to product shipment
· Australian Regulations prevent shipment of this product to Australia
