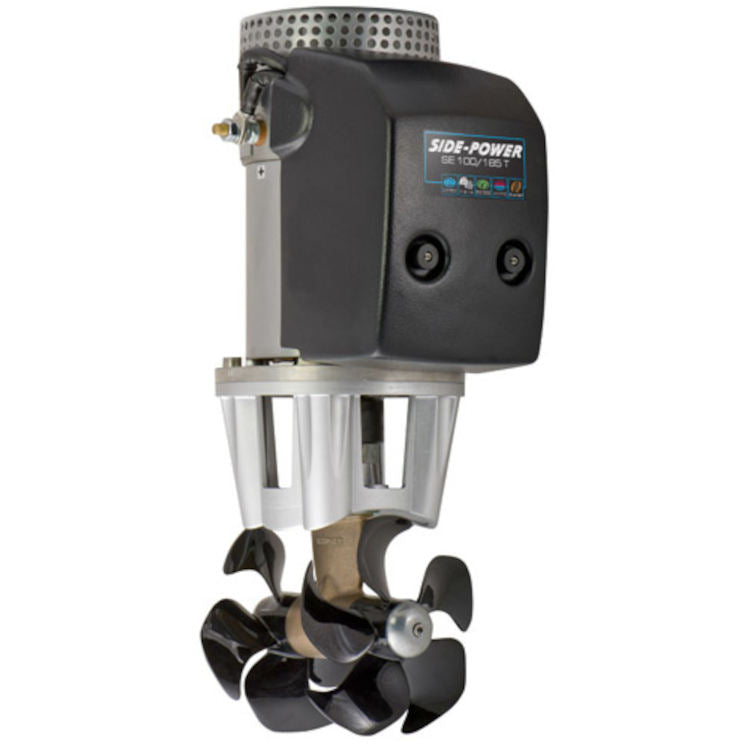

Side-Power Bow Thruster, 100 KGF (220 lbs.), 185 mm (7.28") Tunnel, 24 volt

Mfr: Side-Power
$2,925.00 On Sale
Side-Power Bow Thruster, 100 KGF (220 lbs.), 185 mm (7.28") Tunnel, 24 volt
SKU: 494303
|
Mfg# SE100/185T-24V
|
UNIT: Each
Typically Ships Out in 2 Business Days

SE100/185T-12V & SE100/185T-12V:

  • Typical Boat Size - 40' to 56' (12-17 m)
  • Tunnel Diameter (I.D.) - 7.28" (185 mm)
  • Propulsion System - Twin Props
  • Voltage - 12vdc or 24vdc
  • Thrust - 220 lbs (100 kg)
    • @ 10.5v with 12v motor
    • @ 21.0v with 24v motor
  • Thrust - 256 lbs (116 kg)
    • @ 12v with 12v motor
    • @ 24v with 24v motor
  • Power - 8.4 hp (6.3 kg)
    • @ 10.5v with 12v motor
    • @ 21.0v with 24v motor
  • Minimum Battery Capacity CCA
    • 12v battery, 750 DIN / 1425 SEA
    • 24v battery, 400 DIN / 760 SEA
  • Recommended Fuse Size
    • 12v battery, ANL500 (500 amp)
    • 24v battery, ANL325 (325 amp)
  • Min Depth to Top of Tunnel - 5.47" (139mm)
  • Min Depth to Center of Tunnel - 10.90" (277mm)

SE80/185T-24V:

  • Thrust @ 21VDC 176 lbs (80 kg)
  • Thrust @ 24VDC 212 lbs (96 kg)
  • Typical Boat Size 35-48' (10-15 m)
  • Tunnel Diameter (I.D.) 7.28" (185 mm)
  • Propulsion System Twin
  • Power @ 21V 6 hp (4.4 kw)
  • Voltage 24VDC
  • Minimum Battery Capacity 570 CCA SAE
  • Recommended Fuse Size 250 Amp (SMANL250)
  • Manufacturer Side-Power
  • Min Depth to Top of Tunnel 3.66" (93mm)
  • Min Depth to Center of Tunnel 7.28" (185mm)

SE60/185S-12V:

  • Thrust @ 10.5VDC 132 lbs (60kg)
  • Thrust @ 12VDC 161 lbs (73 kg)
  • Typical Boat Size 29-38' (9-12 m)
  • Tunnel Diameter (I.D.) 7.28 (185 mm)
  • Propulsion System Single
  • Power @ 10.5V 4 hp (3.1 kw)
  • Voltage 12VDC
  • Minimum Battery Capacity 665 CCA SAE
  • Recommended Fuse Size 250 Amp (SMANL250)
  • Manufacturer Side-Power
  • Min Depth to Top of Tunnel 3.66" (93mm)
  • Min Depth to Center of Tunnel 7.28" (185mm)

The SE60 thruster offers the power and performance needed on most yachts from 29-38 ft loa. It features a maintenance-free, sealed gearleg for easy installation and a powerful purpose-built electric motor. Like all Side-Power thusters, the SE60 features the patented Intelligent Power Control (IPC) for safe, reliable performance.
