Wired For The Water | Why Ancor Adhesive-Lined Heat Shrink Tubing Is a Must

Standard single-wall heat shrink tubing might be fine for automotive work, but using it on a saltwater boat is asking for trouble. Without an internal sealant, capillary action draws humid salt air and bilge water right up into the wire jacket, turning clean tinned copper into black powder over time.

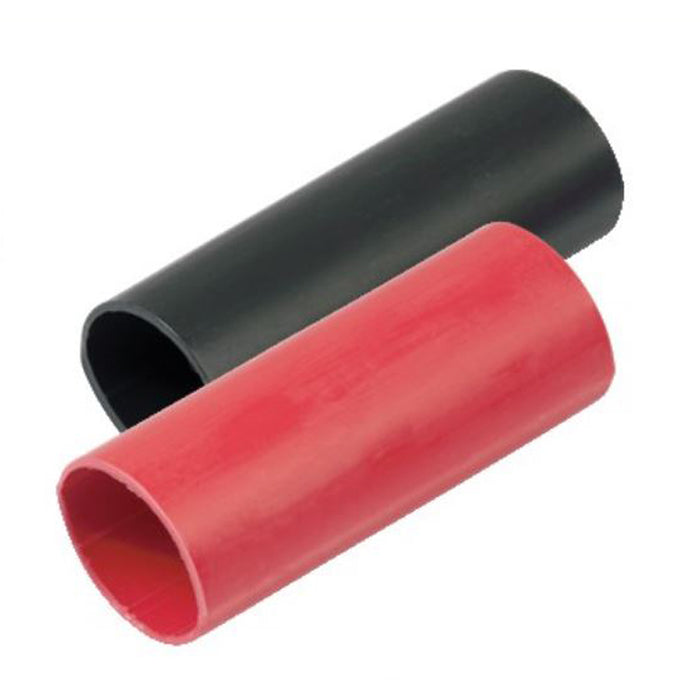

In this video tech tip, our rigging team demonstrates why Ancor Adhesive-Lined Heat Shrink Tubing is non-negotiable for marine wiring and heavy battery cable builds.

The Glue Extrusion Test: Visual Proof of a Watertight Seal

The critical difference is the heat-activated thermoplastic adhesive lining inside the outer polyolefin wall. As demonstrated in the video when heating the tubing with a heat gun, the inner adhesive liquefies and visibly extrudes from both ends of the sleeve as it shrinks down.

This glue squeeze-out is your visual guarantee of a 100% airtight, waterproof seal. It encapsulates the lug barrel, bare conductor, and outer insulation into a single solid unit that resists vibration, moisture, and chemical exposure.

Pro Rigging Tip: Buy Longer Sticks for Custom Lengths

Instead of limiting yourself to pre-cut short sleeves, we recommend ordering Ancor heat shrink tubing in longer pieces and sticks from Go2marine. This gives you key advantages on refits:

• Custom Tailoring: Cut the exact length required to bridge heavy battery lugs, inline splices, or branch terminal blocks without wasting material.
• Multiple Diameters: Stock diameters matching your vessel's cabling—from small 16 AWG instrument wire up to heavy 2/0 and 4/0 battery banks.
• 3:1 Shrink Ratio: Recovers to one-third of its original diameter, allowing it to slide easily over wide ring terminal eyes while still shrinking tight onto smaller cable jackets.
