Description

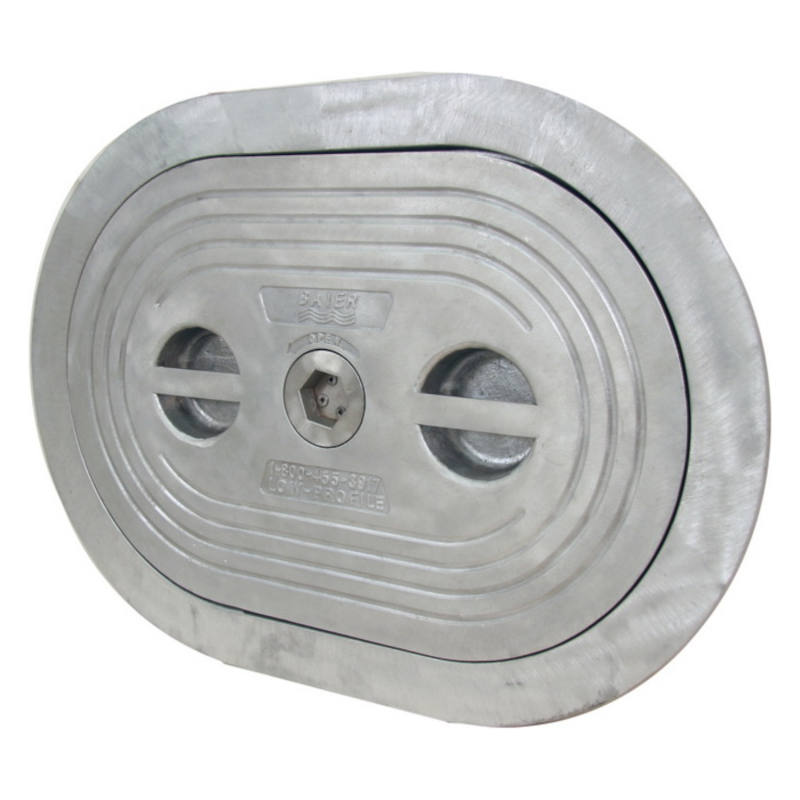

Baier Marine, Low Profile Watertight Hatch, Quick Acting, Oval, 15" x 24", Aluminum Cover and Ring
Item No. BFHLP15X24A/A
The Baier Marine BFHLP15X24A/A is a hybrid hatch. It combines the best of both Baier's traditional hatches and their quick acting hatches. The design of these low profile hatches work in boats where inside clearance is limited. Built strong for the extreme rugged requirements of the commercial and fast utility craft worldwide.
Features:
- The low-profile unit on right is only 2.62 inches high, top to bottom!
- 4-dog, center cam actuation. Clamping pressure across 4 points of contact
- Center cam, when not engaged, pops up as visual indicator that hatch is not secured
- When engaged, cam unit is completely flush – no snags
- Each Baier™ Low Profile hatch assembly also includes an optional Drive Adapter puck which converts the hexagonal drive so hatch
- can be operated with any standard half inch (12.7mm) socket drive
- Built-in underside escape handle
- Drop-in replacement for standard 15” x 24” deck rings
- Cast from high-grade corrosion-resistant 356 aluminum alloy (ASTM B26)
- Secured hatch opens with standard 1 3/4” hex marine t-handle tool
- Adapter for standard 1/2” socket wrench included
- Maximum durability, stronger deck strength and impact resistance
