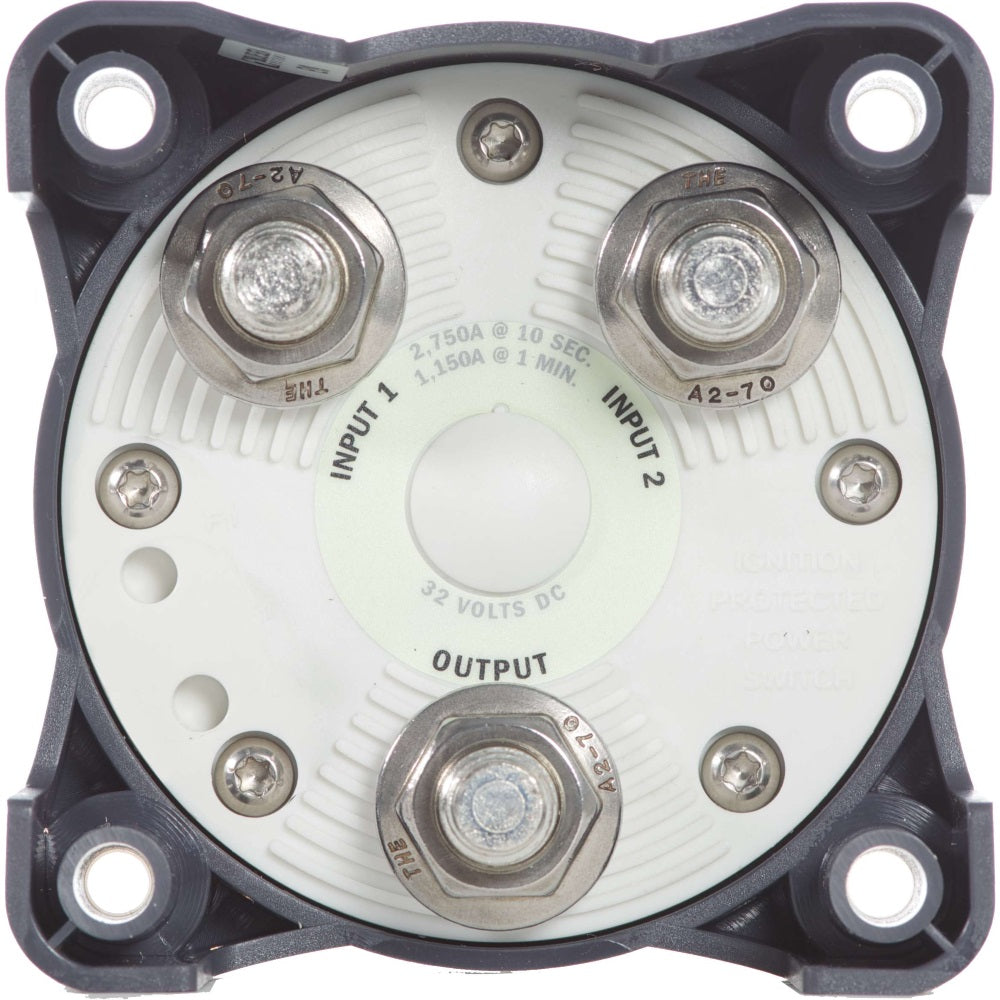

Blue Sea HD-Series Battery Selector Switch, 4 Position
p/n 3002
Switches isolated battery banks on your boat to all loads or combines battery banks to all loads
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protected - safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Accepts two 4/0 AWG (95mm_) battery cables
Specifications:
Switch Type: Selector 4 Position
Color: Grey
Switch Positions: 4
Battery Combine: Yes
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating 10 sec: 2750A
Cranking Rating 1 min: 1150A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.10 in (27.94 mm)
Cable Quantity to Meet Ratings: Two Cables / Terminal
Cable Size to Meet Ratings: 4/0 AWG (120mm_)
Mounting Holes: Accept 1/4" (M6) Screw
Terminal Stud Size: 1/2" (M12)
Terminal Stud Torque: 220 in-lb (24.86 Nm)
Weight: 1.25 lb (0.57 kg)
