Description

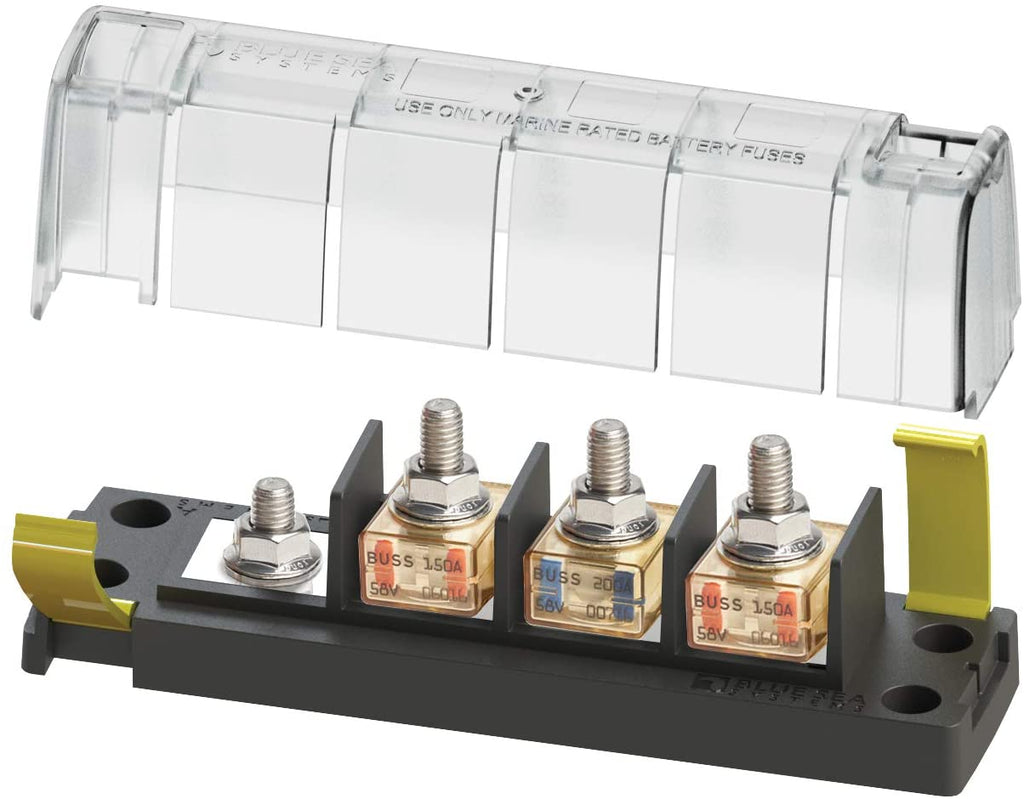

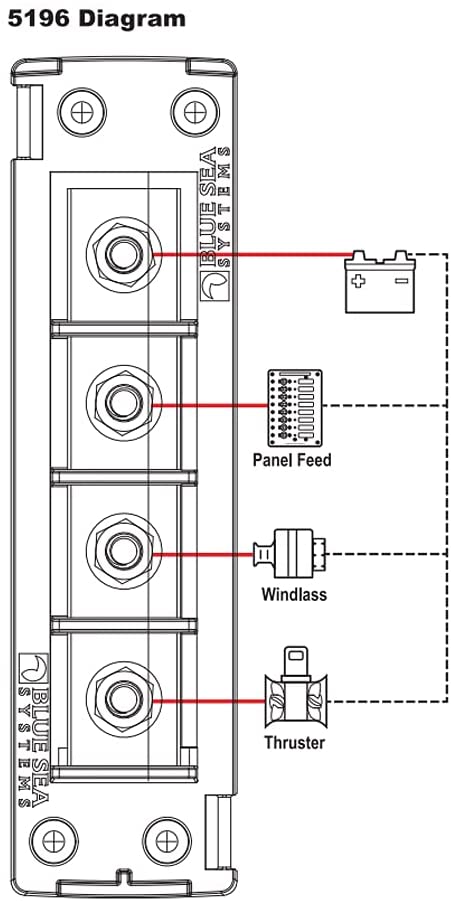

Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection; The common source fuse block (5196) provides 3 loads from a single source; Clip-on cover insulates terminal connections; Versatile wiring options allow all wires to come out a single side; Label recesses for easy circuit identification; One-piece stainless flange nuts ensure safe and secure connections; Ignition protected when used with MRBF fuses; Fuses sold separatelySpecifications:Voltage Max. Operating: 58V DC; Amperage Max. Operating: 240A per circuit; Terminal Fuses Available: 30–300 Amps
Additional Information
