Description

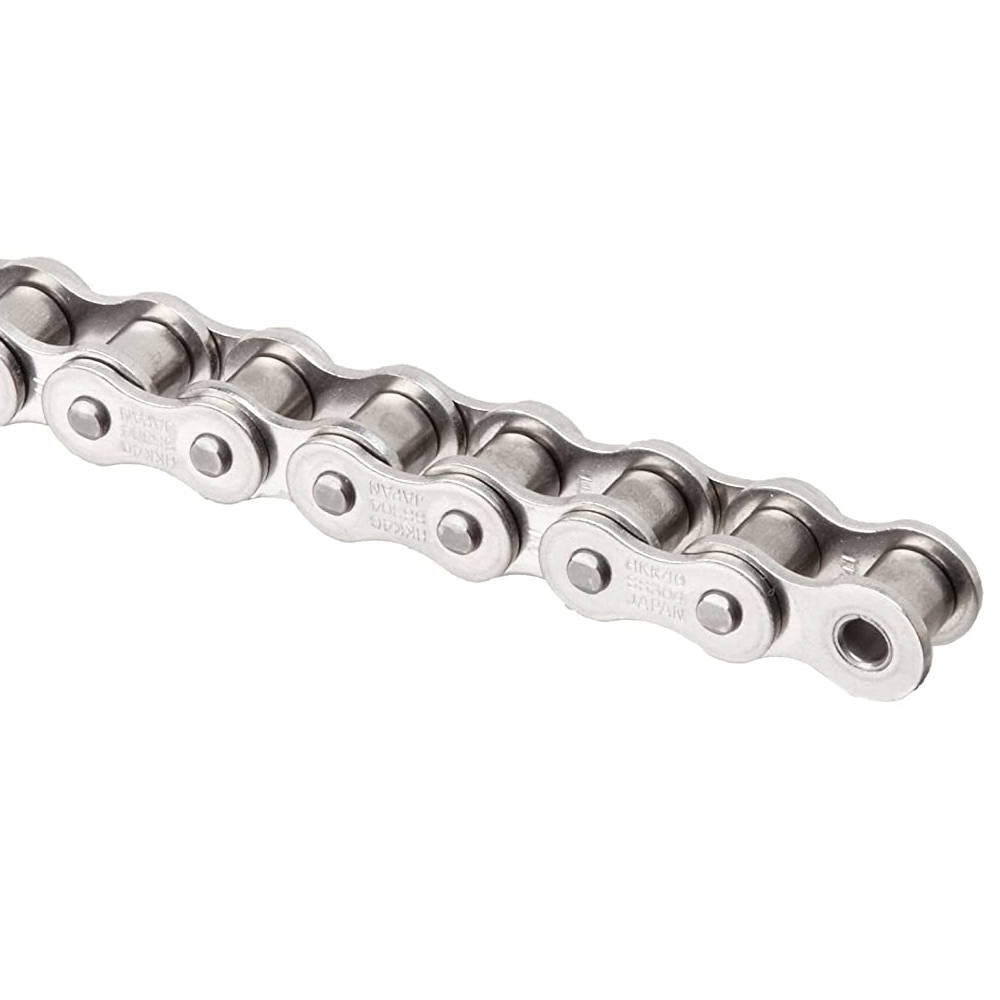

HKK Chain, 60R50SS ANSI 60 Single Strand Roller Chain
Part No. SR060R1BHKK’s precision stainless steel roller chains are manufactured from 300 series stainless steel, to achieve the utmost corrosion and temperature resistance. Equipped with solid rollers which will not split or deform like conventional split rollers under extreme loads and temperatures. Manufactured in accordance with ANSI B29.1 dimensional standards.

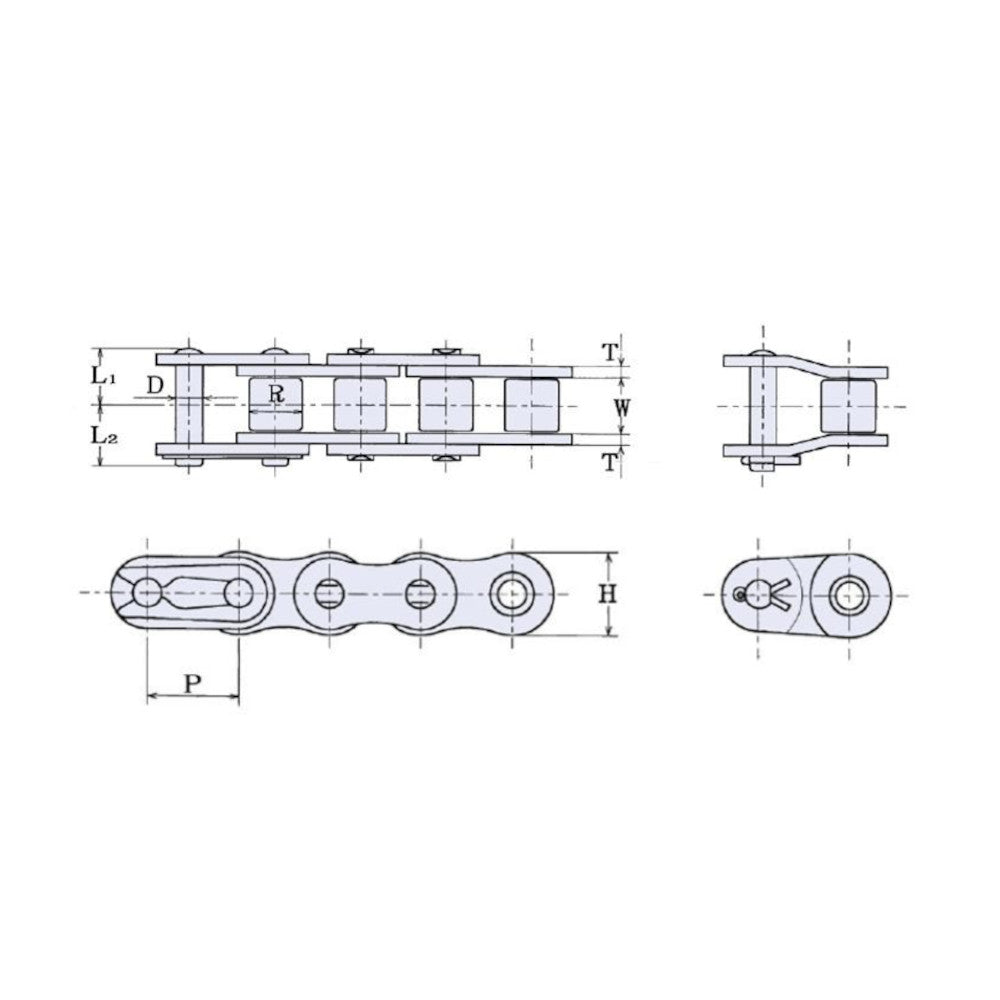

- Pitch A: 3/4"
- Roller Dia. B: 0.469, W: Width: 1/2"
- Pin Dia. D: 0.234"
- Plate Height H: 0.689", T: Thickness: 0.094"
- Overall Width L1: 0.500", L2: 0.548"
- Trans-verse G: 0.898"
- Maximum Allowable Load (Lbs): 231
- Average Ultimate Strength (Lbs): 6,200
- Average Weight Per Foot (Lbs): 0.98
This HKK single strand stainless steel roller chain with riveted links is recommended for temperatures ranging from -40 degrees F to 800 degrees F and meets American National Standard Institute (ANSI) B29.1 standard, making it dimensionally interchangeable with other ANSI chains.
Roller chains are commonly used as a power transmission component and are composed of four parts: plate, roller, bushing, and pin. A series of cylindrical rollers are held together by side links, which fit together into a toothed wheel called a sprocket. Connecting links are used to join the two ends of the chain together to form a loop. Roller chains range from simple, mechanical drives such as bicycle chains, to complex power transmission products that drive conveyors and other industrial machinery, such as printing presses and farm equipment.
