Description

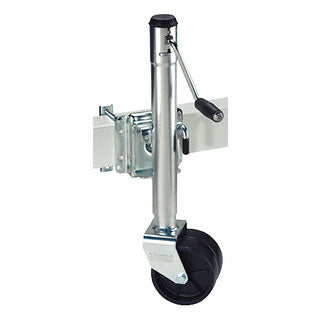

Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. For weld-on applications, we offer two styles of mounts for both 1/2" and 3/8" pull pin models. The Fulton brand bolt-thru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit u pto a 3" x 5" trailer frame.
- Extensive choice of popular models, Sidewind Crank with Round or Square Tubes
- Strong propriety bushing materials
- Stable formed heavy-gauge steel construction
- Dependable design
- Lift capacity from 400 lbs. to 5,000 lbs.
| Brand: | Fulton | |
| Part Number: | XPD15L0101 | |
| Warranty: | Limited 5 Year Warranty | |
| UPC: | 088154097244 | |
| Dimensions: | 9.7" x 26.4" x 7" (Shipping) | |
| Finish: | Z-Max 600 | |
| Weight: | 20.84 lbs | |
| Pull Pin Diameter: | 0.5 in. | |
| Capacity: | 1,500 lbs. | |
| Travel: | 12 in. | |
| Clearance: | 12.4 in. | |
| Retracted: | 13.1 in. | |
| Cylinder Diameter: | 2.25 in. | |
| Extended: | 25.1 in. | |
| Wheel Diameter: | 6 in. | |
| Foot Length: | N/A | |
| Foot Width: | N/A | |
| Model No.: | N/A | |
| Quick Connect Type: | N/A | |
| Speedy Lift: | No | |
| Handle Style: | Sidewind | |
| Material: | Steel | |
| Attached Wheels: | Yes | |
| Color: | Zinc |
