Description
Product Description
| MPN | W10/3-C | W12/3-C and W12/3-D | W14/3-C and W14/3-D | W16/3-C | WR10/3-D |
| AWG | 10 | 12 | 14 | 16 | 10 |
| No. of Conductors | 3 | 3 | 3 | 3 | 3 |
| Conductor Stranding | 105/0.0100 | 65/0.0100 | 41/0.0100 | 26/0.0100 | 105/0.0100 |
| Nom. Jacket Thickness | 0.030 | 0.030 | 0.030 | 0.030 | 0.045 |
| Nom. Cable O.D. | 0.265 x 0.645 | 0.230 x 0.560 | 0.210 x 0.505 | 0.200 x 0.465 | 0.545 |

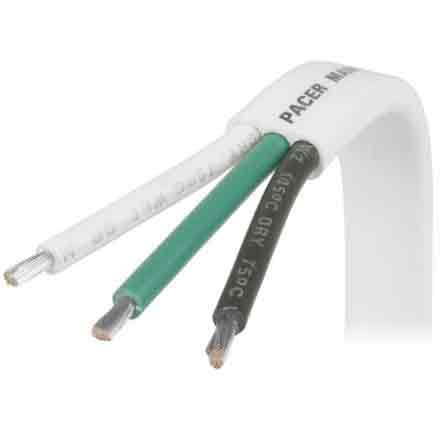

Triplex boat cable is often used for AC circuits in boats and recreational vehicles. Pacer manufactures triplex cable in Sarasota FL, USA for easy installation and longevity. How do they do that? Well, finely stranded tinned copper conductors help to prevent corrosion. At the same time, these conductors allow the cable to be flexible. Flexibility is essential when working in enclosed marine spaces. Another important aspect of triplex boat cable is the insulation. The PVC insulation is manufactured to provide protection from fatigue and moisture. This is achieved during the extrusion process of the insulation. While extruding, Pacer leaves no void between conductors. This eliminates the possibility of moisture or air between the wires. As an added bonus, talcum powder is coated on the wires. This allows for the easy removal of the jacket during installation. Another reason triplex boat cable is perfect for use with multiconductor cable connectors.
Features:
- Stranded, tinned copper
- Color coded conductors
- Tough PVC Jacket
- Highly flexible
- Easy to strip and route
Compliances:
- UL Standard 1426
- ABYC: E-11.16
- Coast Guard: 33 CFR part 183
- RoHS Compliant
- UL Compliant
Characteristics:
- Conductor: Annealed Fine Stranded Tinned Copper ASTM B172 Class K
- Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
- Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
- Voltage Rating: 600 V
- Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture
Applications:
- Pacer's UL triplex cable is perfect for AC circuits in boats and recreational vehicles.
