Description

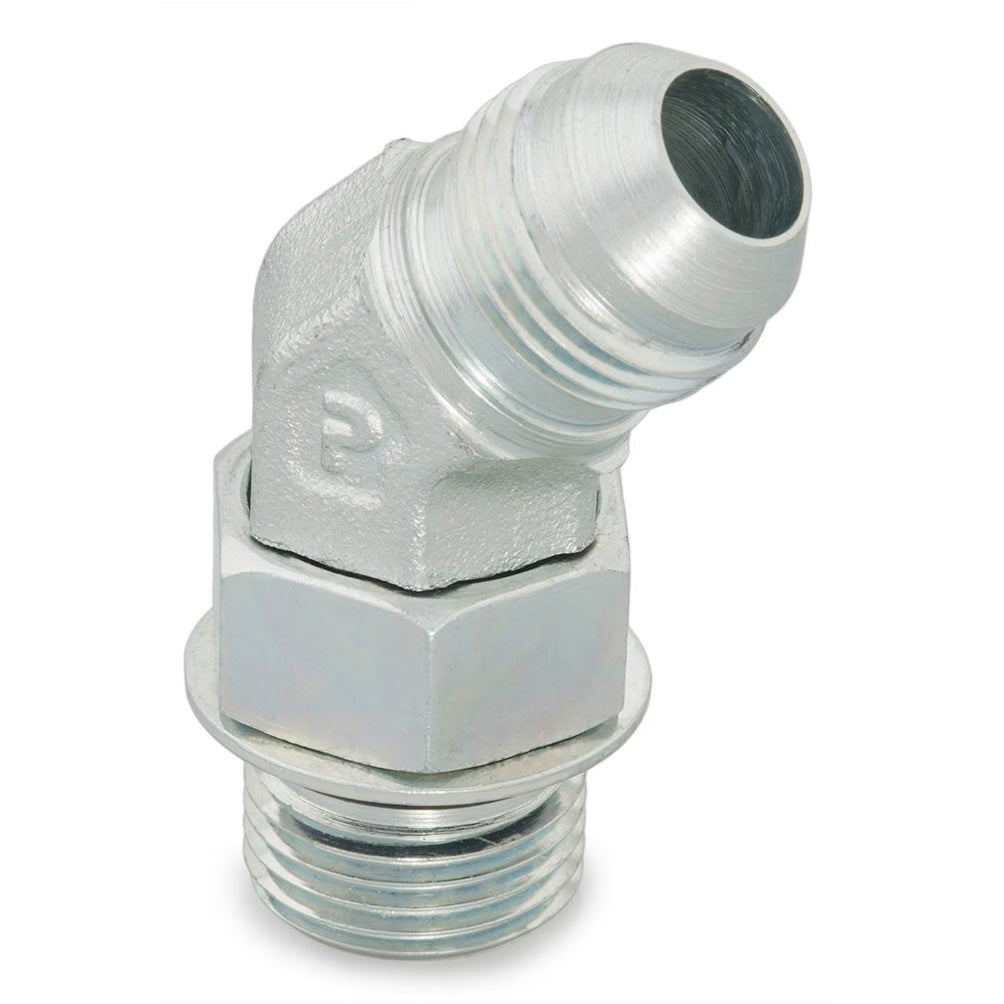

Experience reliability and performance with the Parker Triple-Lok 37° Flare Male JIC 1/4" Tube Fitting. Designed to meet SAE J514 and ISO 8434-2 standards, this fitting ensures industry-leading robustness and compatibility across a variety of markets, including construction, agriculture, military, and material handling. Its compact design minimizes metal-to-metal seal areas, providing a solution that excels under high-pressure (up to 7500 psi) and high-temperature conditions.
Engineered for flexibility, the Triple-Lok is adaptable to inch tubes, metric tubes, and hoses, making it suitable for global applications. With its extensive selection of port ends—including SAE ORB, NPTF, BSPP, ISO 6149, and more—it offers unparalleled versatility. Parker’s innovative Robust Port Stud eliminates washer damage and assembly errors, which saves time, reduces rework costs, and enhances equipment reliability.
Additionally, steel fittings with ToughShield Plus plating provide up to 3,000 hours of corrosion resistance (tested to ASTM B117/ISO 9227), ensuring longevity and reducing downtime. Stainless steel nuts feature a gall-resistant coating, for a wide variety of hydraulic fluid and gas handling applications.
| Connection Type: | 37° Flare, Tube to SAE-ORB |
| Specifications Met: | SAE J514 |
| Maximum Dynamic Pressure: | 6000 psi |
| Shape: | 45° Elbow |
| Connection 1 Size: | Male 37° Flare |
| Connection 1 Tube Outside Diameter: | 1/4 inch, 6 mm |
| Connection 2 Size: | Male SAE-ORB |
| Connection 2 Thread Size: | 7/16-20 inch, na |
| O-Ring Material: | 90 Durometer Nitrile |
| Body Material: | Steel |
