Description

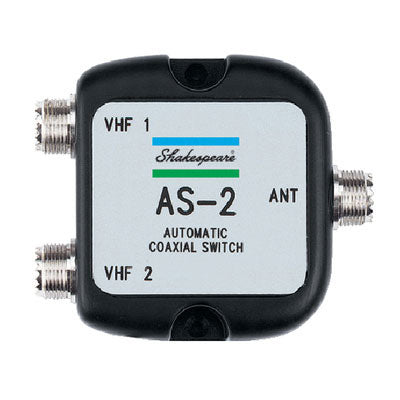

Shakespeare, 2-Position, Marine Grade, AS-2 Automatic Coaxial Switch. This automatic switch from Shakespeare toggles two radios to one antenna. The automatic switch mounts out of the way, because you don't have to get at it to use it. When you key the microphone on one of the radios, the AS-2 switches the antenna to it automatically. The radio stays locked onto the antenna until the automatic switch detects a transmit from the other radio. Easy!
- Frequency Range: up to 600 MHz
- VSWR: Below 1.2:1
- Power Rating: 30 W
- Impedance: 50 ohms
- Connections: SO-239 type
- Power Supply: 12 vDC @ 200 ma
- Sensing/Switching Time: Less than 100 ms
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: The length of the warranty may vary by product, please refer to documenation that came with your product for the exact terms and conditions of the warranty for your purchase. Return: All returns must be recevied within 30 days of receipt. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns and help with Warranties.
