Description
- Handles common outputs - 240-33ohm, 10-180ohm, Vetus 10-300ohm for analog resistive gauges (not suitable for resistive digital gauges or CAN systems) and 0-5 V tanks from BEP, Teleflex, Faria, VDO and many other popular instrument brands. (When connecting to non-adjustable gauges the TS1 must be pre-calibrated)

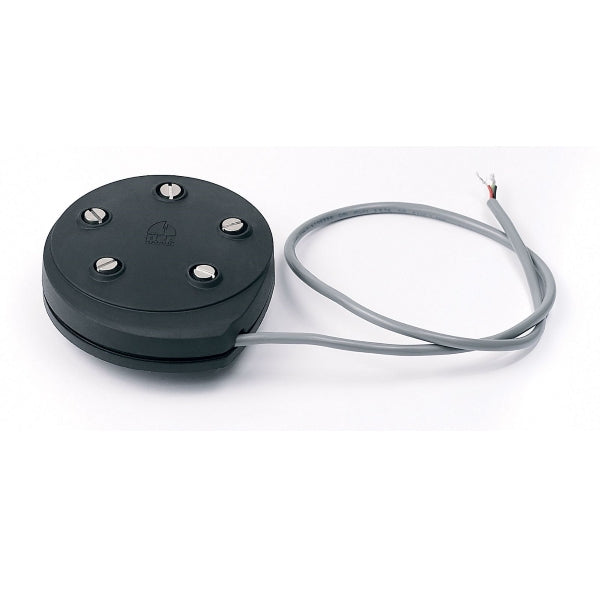

- Low Profile Design and standard SAE 5 hole mounting pattern, allowing it to be retrofitted to practically all other sender brands
- Can be set for tank dimensions via computer using BEP Marine's proprietary TS1 software, avoiding experimental tank filling on site
- Connects directly to the BEP 600-TLM-N digital tank monitor when configured to a 0-5 V output
- Is set for 0-2000 mm depth off the shelf (not suitable for tank depths less than 200 mm)
- Operating voltage: 10-32 V
- Current draw: 25 mA with 5 V gauge output
- Measurement method: Acoustic sonic measurement
- Tank depth: 0-2000 mm (6.5 ft)
- Accuracy Distance: 0-2000 mm (6.5 ft) at 2 mm accuracy
- Mounting: SAE 5 stud mounting pattern with gasket, seal and screws (top mount only)
- Environmental temperature: 4-65 deg C
- Chemical resistance: Petrol, diesel, water, toilet chemicals
- Tank type style: Metal and plastic with non linear capacity
- Works with petrol, diesel, fresh water, grey water and black water
