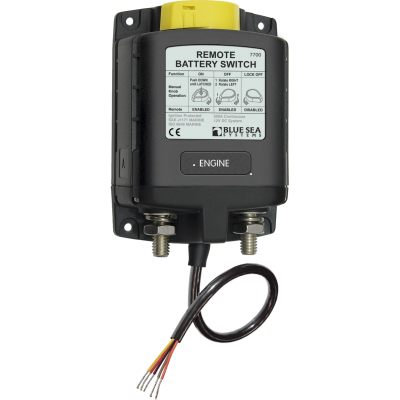

Blue Sea Systems, ML-Series Heavy Duty Remote Battery Switch, 12 - 24 Volt, 500 Amp

$193.95 to $223.95
$193.95 to $223.95
Specifications:
  • Control Circuit Connection: Tinned Wire
  • Mounting: #10
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating: 500A
  • Intermittent Rating: 700A (5 min)
  • Cranking Rating 30 Sec: 1450A DC
  • Min. Operating Temp: -10° C
  • Max. Operating Temp: 60° C
  • Cable Size to Meet Ratings: 2x (4/O)
  • Live Current Switching: 300A @ 12V DC
  • Mechanical Endurance: 100,000 Cycles
  • Terminal Rind Dia. Clearance: 1.18" (29.97 mm)
  • Terminal Stud Length: 0.875" (22.23 mm)
  • Terminal Stud Size: 3/8" - 16 (M10)
Item #
MPN
Nominal Volt
Coil Function
Amperage Operating Current
Amperage Operating Current when changing state
Control Circuit Volt
Master Control Switch Capability
Blue Sea Systems, ML-Series Heavy Duty Remote Battery Switch, 12 - 24 Volt, 500 Amp
Item #:531388-24Volt-Auto-Releasing
MPN:7717
Nominal Volt: 24V DC
Coil Function: Auto-Releasing
Amperage Operating Current: 8mA when OFF, 13mA when ON
Amperage Operating Current when changing state: <4A (40 ms)
Control Circuit Volt: 20.2 to 32.9V DC
Master Control Switch Capability: Yes
Blue Sea Systems, ML-Series Heavy Duty Remote Battery Switch, 12 - 24 Volt, 500 Amp
Item #:531388-12Volt-Auto-Releasing
MPN:7713
Nominal Volt: 12V DC
Coil Function: Auto-Releasing
Amperage Operating Current: 8mA when OFF, 13mA when ON
Amperage Operating Current when changing state: <7A (40 ms)
Control Circuit Volt: 10.1 to 16.5V DC
Master Control Switch Capability: Yes
ML - Series Heavy Duty Remote Battery Switch, 24 Volt, 7702
Item #:531388-24Volt-Bi-Stable
MPN:7702
Nominal Volt: 24V DC
Coil Function: Bi-Stable
Amperage Operating Current: 0mA
Amperage Operating Current when changing state: <4A (40 ms)
Control Circuit Volt: 18-32V DC
Master Control Switch Capability: No
ML-Series Heavy Duty Remote Battery Solenoid Switch, 12 Volt, 350 Amp.
Item #:531388-12Volt-Bi-Stable
MPN:7700
Nominal Volt: 12V DC
Coil Function: Bi-Stable
Amperage Operating Current: 0mA
Amperage Operating Current when changing state: <7A (40 ms)
Control Circuit Volt: 9-16V DC
Master Control Switch Capability: No
