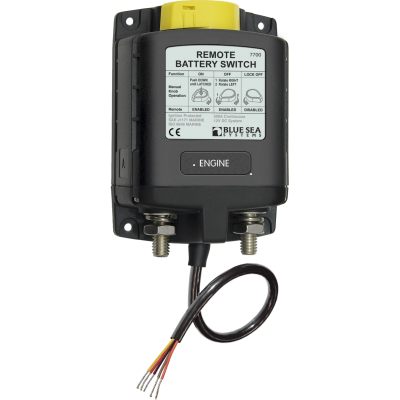

Description
- Control Circuit Connection: Tinned Wire
- Mounting: #10
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 500A
- Intermittent Rating: 700A (5 min)
- Cranking Rating 30 Sec: 1450A DC
- Min. Operating Temp: -10° C
- Max. Operating Temp: 60° C
- Cable Size to Meet Ratings: 2x (4/O)
- Live Current Switching: 300A @ 12V DC
- Mechanical Endurance: 100,000 Cycles
- Terminal Rind Dia. Clearance: 1.18" (29.97 mm)
- Terminal Stud Length: 0.875" (22.23 mm)
- Terminal Stud Size: 3/8" - 16 (M10)
