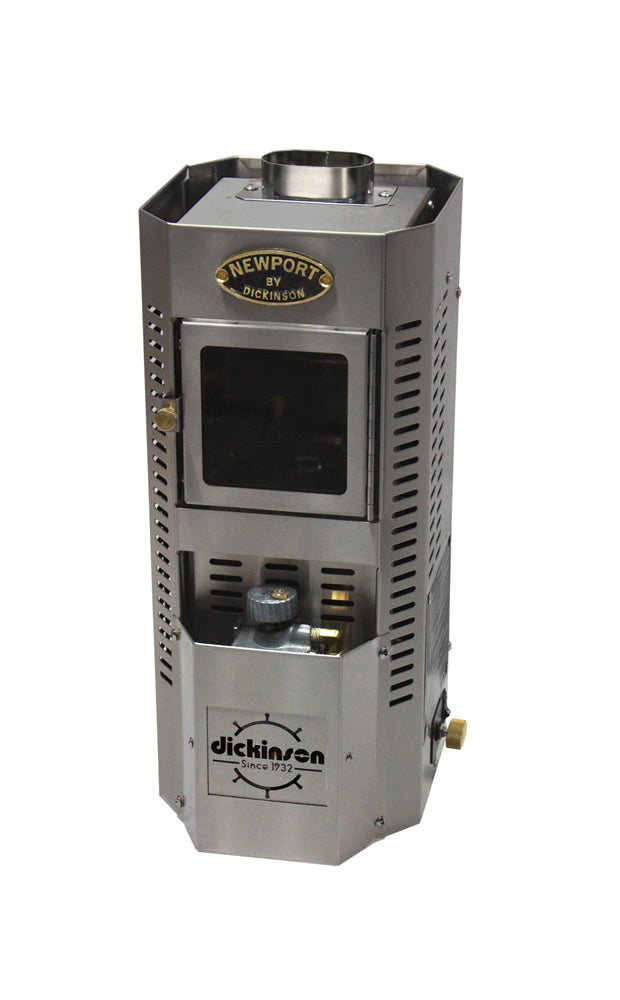

The Newport Bulkhead Mounted Heater is ideal for boats 30-35ft. Small, compact, and bulkhead mounted. An attractive, economical diesel burning heater, providing comfortable, dry heat.
- Requires .
- Minimum 4ft or maximum 8ft of chimney is required, a 6ft straight run with no elbows work best.
- Chimneys 6ft or longer Dickinson highly recommends a .
- Permanent fresh air vent needed in area of the unit.
- Decorative laser cut valve cover.
- Creates a dry heat to dry out moisture inside the vessel.
- In sailboat installations, this unit must face fore or aft, if facing port or starboard is desired, the valve would need to be mounted to the side of the unit so the gravity fed valve won't starve the burner on heels up to 15 degrees.
- 12v draft assist fan included (can be converted to 24v and 32v). Used for start up and draft assistance on high fire.
- Valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil.
- 1 turn hot water coil for 5-10 gal can be installed for water heating.
Width: 8.50?
Height: 19.75"
Depth: 10.50"
Weight: 22 lbs
- Fuel Consumption / 24hr:
- 1.29 gal LOW
- 3.20 gal HIGH Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
Dickinson Newport(PDF)
Item #
MPN
Finish
Fan Type
Water Heating Coil
Size
Flue Size
Heat Output
Type
Weight
Dickinson Newport Diesel Marine Heater, Fireplace - 12 Volt Fan - 1 Water Coil
Item #:531535-12Volt-SingleCoil
MPN:00-NEW-12-1T
Finish: Stainless
Fan Type: 12 Volt
Water Heating Coil: Single Coil
Size: 10.5" x 10.75" x 19.5"
Flue Size: 3"
Heat Output: L6,500-H16,250
Type: 6" SS "Airflow"
Weight: 22 lbs
Dickinson, Newport Diesel Marine Heater, Fireplace - 12 Volt Fan
Item #:531535-12Volt-None
MPN:00-NEW
Finish: Stainless
Fan Type: 12 Volt
Water Heating Coil: No
Size: 10.5" x 10.75" x 19.5"
Flue Size: 3"
Heat Output: L6,500-H16,250
Type: 6" SS "Airflow"
Weight: 22 lbs
Dickinson Newport Diesel Marine Heater, Fireplace - 24 Volt Fan - 1 Water Coil
Item #:531535-24Volt-SingleCoil
MPN:00-NEW-24-1T
Finish: Stainless
Fan Type: 24 Volt
Water Heating Coil: Single Coil
Size: 10.5" x 10.75" x 19.5"
Flue Size: 3"
Heat Output: L6,500-H16,250
Type: 6" SS "Airflow"
Weight: 22 lbs
Dickinson Newport Diesel Marine Heater, Fireplace - 24 Volt Fan
Item #:531535-24Volt-None
MPN:00-NEW-24
Finish: Stainless
Fan Type: 24 Volt
Water Heating Coil: None
Size: 10.5" x 10.75" x 19.5"
Flue Size: 3"
Heat Output: L6,500-H16,250
Type: 6" SS "Airflow"
Weight: 22 lbs
