Description

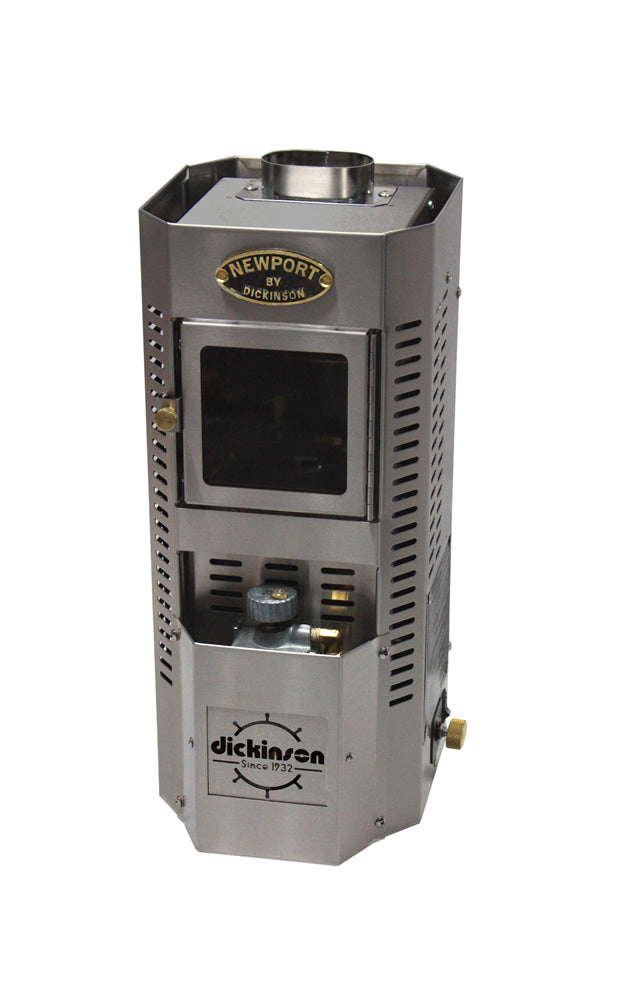

The Newport Bulkhead Mounted Heater is ideal for boats 30-35ft. Small, compact, and bulkhead mounted. An attractive, economical diesel burning heater, providing comfortable, dry heat.
- Requires .
- Minimum 4ft or maximum 8ft of chimney is required, a 6ft straight run with no elbows work best.
- Chimneys 6ft or longer Dickinson highly recommends a .
- Permanent fresh air vent needed in area of the unit.
- Decorative laser cut valve cover.
- Creates a dry heat to dry out moisture inside the vessel.
- In sailboat installations, this unit must face fore or aft, if facing port or starboard is desired, the valve would need to be mounted to the side of the unit so the gravity fed valve won't starve the burner on heels up to 15 degrees.
- 12v draft assist fan included (can be converted to 24v and 32v). Used for start up and draft assistance on high fire.
- Valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil.
- 1 turn hot water coil for 5-10 gal can be installed for water heating.
Width: 8.50?
Height: 19.75"
Depth: 10.50"
Weight: 22 lbs
- 1.29 gal LOW
- 3.20 gal HIGH
- Low: 6500 BTU
- High: 16250 BTU
Installation Manual Dickinson Newport (PDF)
