Wired For The Water | Connecting Dissimilar Sized Wire

At some point while rigging or repairing electrical systems on your boat, you are going to encounter two wires of different gauges that need to be joined together. A textbook example occurs when connecting small gauge factory pigtails—like an 18 AWG sensor lead from a Johnson Pump—directly into your vessel's 14 AWG primary branch circuit.

Forcing a small wire into an oversized connector or doubling over strands leads to high electrical resistance, loose crimps, and potential fire hazards. In this video guide, our rigging team demonstrates how Ancor Step-Down Heat Shrink Butt Connectors solve this problem with seamless, ABYC-compliant transitions.

Color-Coded Barrel Sizing: Eliminating Guesswork

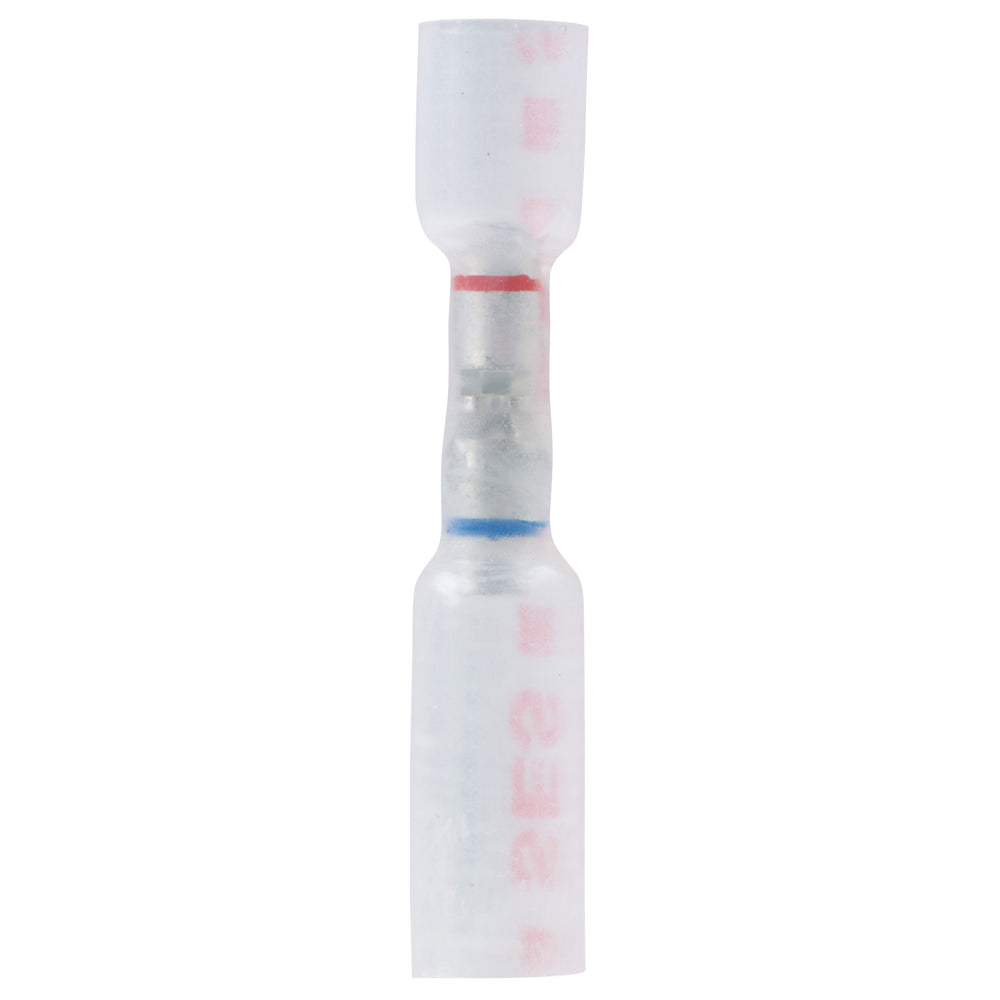

Ancor step-down butt connectors feature precision-machined tinned copper barrels designed specifically for different gauge pairings, complete with color-coded sealing bands:

• Blue to Yellow: Slices 14–16 AWG wire (blue ring) down to 10–12 AWG wire (yellow ring).
• Blue to Red: Slices 14–16 AWG primary wire (blue ring) down to 18–22 AWG accessory leads (red ring).

Pro-Grade Installation Technique: Step-by-Step

To build a 100% watertight, high-tensile connection in damp bilges:

• Measure the Center Stop: Each connector features a mechanical stop centered inside the copper barrel. Strip only enough insulation to allow the conductor to seat against this stop without exposing bare wire outside the heat shrink sleeve.
• Crimp with Controlled Leverage: Insert the larger 14 AWG wire into the blue side and crimp down using ratcheting double-crimp pliers, ensuring firm compression without puncturing the polyolefin insulator.
• Terminate the Sensor Lead: Insert the 18 AWG lead into the red ring side and complete the second crimp in the matching jaw cavity.
• Heat Activate the Adhesive Seal: Direct heat evenly using a marine heat gun. The outer jacket shrinks tight while the internal adhesive flows from both ends, forming a permanent, moisture-proof seal.
