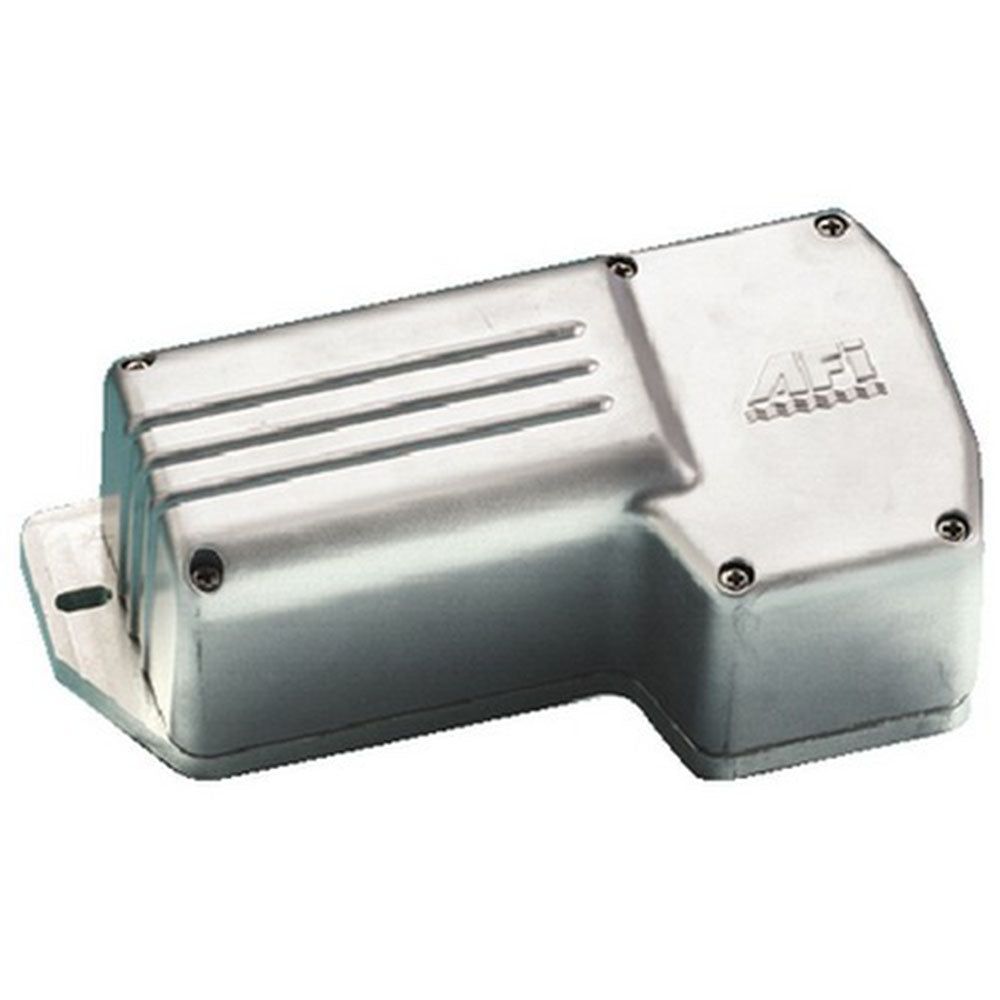

12 volt Waterproof Wiper Motor, 2.5" Shaft, 80° Sweep

MarincoSKU: 322304
MPN: 82082 | Catalog No: AFI82082
Contact us for availability

Price:
Sale price$316.68

Description

The 2.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 26" Deluxe arm and Deluxe blade combination or a 24" Premier arm and Premier blade combination.

  • Available in two shaft lengths: 1.5" and 2.5"
  • Factory pre-set sweep angles of 80 degree or 110 degree, with easy adjustment to 45 degree or 60 degree
  • Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
  • Two speed motor
  • Sealed 6" wire leads, 16 AWG
  • Adjustable right or left self parking
  • 0.625" diameter shaft (16 mm)
  • Available in 12V and 24V models
  • Coast to park
  • RF shielded circuitry
  • Retail version includes 6 amp fuse and holder (operating switch not included)
  • Measures approximately 7.875" L x 4.25" W x 3" D
  • Stall torque: 139 in-lbs (160 kgf/cm; 15.7 Nm)
  • Stall current: 9.0-10.5 amps
  • No load current: 1.0 -1.6 amps
