Description

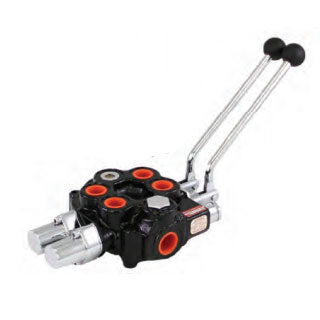

TS Monoblock Directional Control Valve, 2 Spool, 316 SS
• 18 gpm (68.0 lpm) Nominal Capacity.• Rated up to 3000 psi (207 bar).
• Port Sizes: -Inlet/Outlet #12 SAE. -Work Ports #10 SAE.
• 10 Micron Filtration Recommended.
• Weight: TS2 = 14 lbs. (6.4 kg)
MATERIALS: • Cast Iron Body • Buna N O’Rings • IOSSO Plated Steel Spools • Black Nylon Ball Knob
• O’RING PORTS to eliminate leakage. • POWER BEYOND CAPABILITY to fit your multi valve circuits. • BUILT IN ANTI-DROP CHECK prevents the load from dropping when the spool is shifted. • FOURTH POSITION FLOAT allows spool movement to a fourth position and makes all ports common to each other (last spool only). • PRECISION GROUND IOSSO PLATED SPOOL that assures long life.
Manufacturer: Brand Hydraulics
Category: Flow Control Valves
