Description
Features:
- Mounting System Allows Removal Without Tools
- Bonding Connection Both Sides
- O-Ring Seal All Joining Surfaces
- Filter Basket Options
- #304 SS (Standard)
- Monel
- Non-Metallic
- One-Piece Molded Sight Glass Eliminates Tie Rods and Gaskets
- Improved Drain Plug
- Non-Metallic Cap Magnifies Internal Viewing
- NPT or BSPP Threaded Ports
- Improved Basket Design
- C84400 bronze head casting
- UL Listed 255-D
Additional Information
| Spec Sheet | No |
|---|---|
| Basket Type | Monel |
| Thread NPT | 3" |
| Open Area Ratio | 6 |

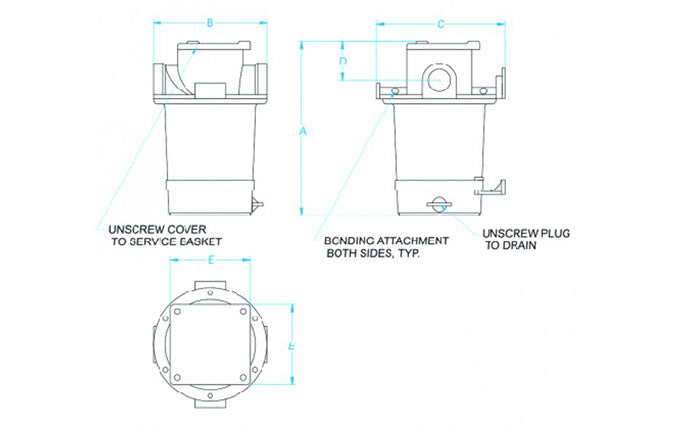

Dimensions
| Thread NPT | 3" |
| A | 15.2 |
| B | 7.3 |
| C | 7.8 |
| D | 3.5 |
| E | - |
| Open Area Ratio | 6 |
