The Concept:

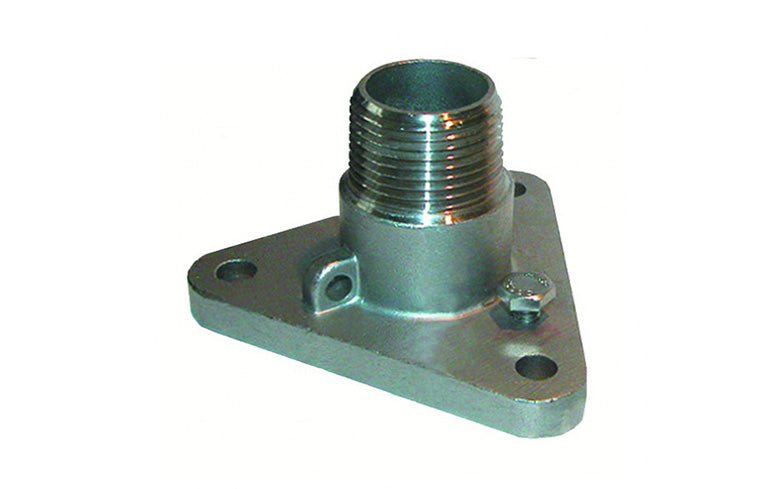

Patented IBVF Flanged Adaptors have been developed to address several common problems in the marine industry. Here’s what they do:
- Eliminate dangerous thread mismatch when in-line valves are screwed onto thru hulls.

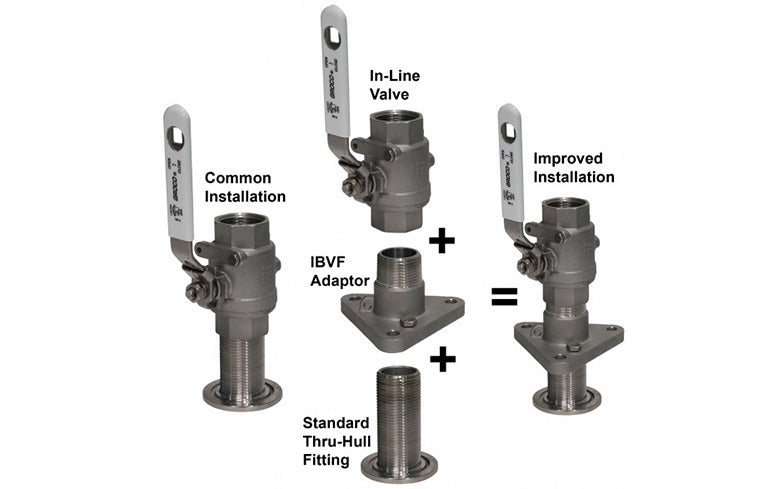

- Accept standard thru-hulls into the base and standard in-line valves on top.
- Provide a safe and sturdy assembly when in-line valves are used as seacocks.
- For OEMs, prevent valve damage during engine or generator installation - the valve can be installed later.
- Simplifies future valve replacement.
- C83600 Bronze and #316 SS models

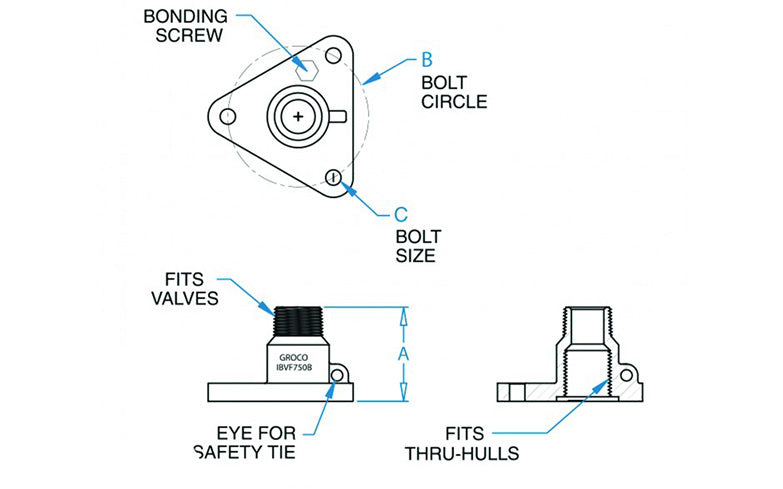

Dimensions
| Thread Bottom NPS | 1-1/2" |
| Thread Top NPT | 1-1/2" |
| A | 2.18 |
| B | 4.5 |
| C | 5/16" |
