Description
Towing Peace of Mind ™
Learn how Weigh Safe can help you perfectly balance your vehicle’s towing load and improve trailer performance.
Weigh Safe trailer hitches are the only hitches on the planet with a built-in scale that measures tongue weight to improve towing performance.
Their products are cut from aircraft-grade aluminum, stainless, and high-quality steel components, then programmed and machined to the tightest tolerances on state-of-the-art CNC machinery. Next, a rigorous inspection and testing processes to ensure they meet or exceed the industry standards and expectations.

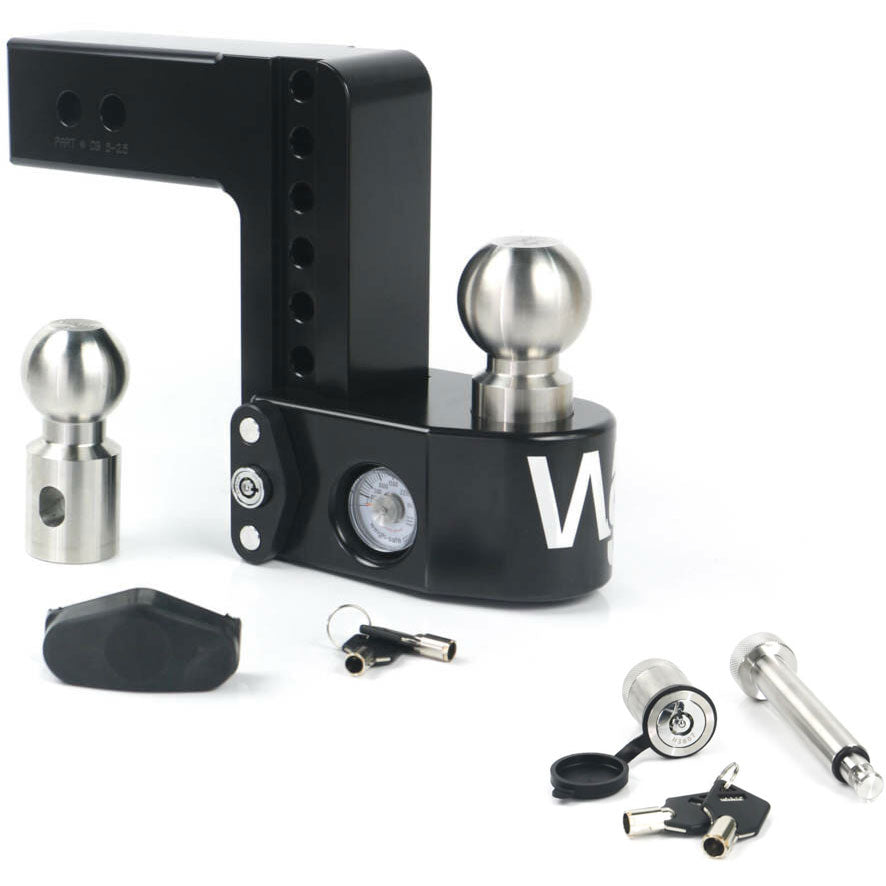

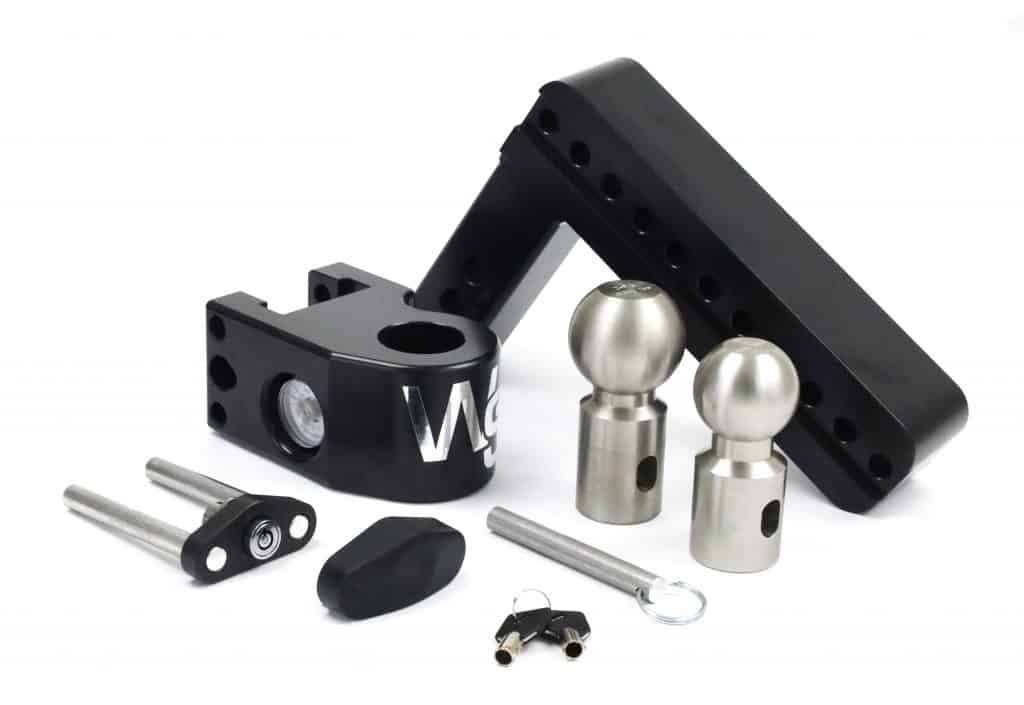

WHAT'S IN THE BOX
| 1- Drawbar | 1- Slider with Gauge |
| 1- 2″ Ball | 1- 2-5/16″ Ball |
| 1- Ball Retaining Pin | 1- Lock Plate Key Assembly |
| 1- Dust Lock Cover |
SPECIFICATIONS
| Drop Lengths |
4" Drop
6" Drop 8" Drop 10" Drop |
|---|---|
| Built-in Scale | ✓ |
| Shaft | 2", 2.5", or 3" |
| Ball | 2" & 2-5/16" Stainless Steel Balls Included 1-7/8 add-on option" |
| Max GTW |
2" Shank: 1 7/8" ball - 7500 lbs 2" ball - 8000 lbs 2 5/16" ball 12,500 lbs
2.5" Shank: 2 5/16” ball - 18,500 lbs 3" Shank: 2-5/16" ball - 21,000 lbs |
| Max Tongue | 1,500 lbs (2" Shaft), 2,200 lbs (2.5" & 3" Shafts) |
| V5 & J684 certified | ✓ |
| Drop Hitch Adjustment | 1” increments |
| Weight |
4" Drop = 16 lbs
6" Drop = 18 lbs 8" Drop = 19 lbs 10" Drop = 20 lbs |
| Ball material | Stainless steel |
| Pin | Dual pin key lock assembly included |
| Rise | All hitches may be used in rise position *Gain 1 inch (e.g., 4” drops are 5” rises) |
| Total Height | Add 3 inches (*e.g., 4” drops measure 7" from the top of the receiver to the hitch base) |
| Hitch Pin Hole | 5/8" Diameter |
| Compatible with Clam Shell | ✓ |
| Stowable |
✓
***Our Weigh Safe 3" shank sizes are not stowable |
| Saves Property | ✓ |
| Saves Time | ✓ |
| Maintenance | Stainless steel tow balls can still show surface rust, particularly after use in a coupler and exposure to water/salt. This rust will not spread past the surface of the towball and it will not affect the performance of the towball. The rust can be cleaned up and removed with a scotch brite/brillo pad. |
Cerakote is a Polymer-Ceramic Composite coating that can be applied to metals, plastics, polymers and wood. The unique formulation used for Cerakote ceramic coating enhances a number of physical performance properties including abrasion/wear resistance, corrosion resistance, chemical resistance, impact strength, and hardness. Each of these properties is rigorously tested to guarantee that Cerakote products remain at the forefront of the ceramic coatings market. Cerakote ceramic coatings utilize state-of-the-art technology to out-perform any competitive coating in both laboratory settings and real world applications.
While Cerakote finish is superior to normal paints and even powder coating, please note that due to the nature of towing and the various abuses that a hitch often takes (flying gravel and larger rocks, people climbing on it, etc.), the Cerakote finish is not covered by warranty.
