Description

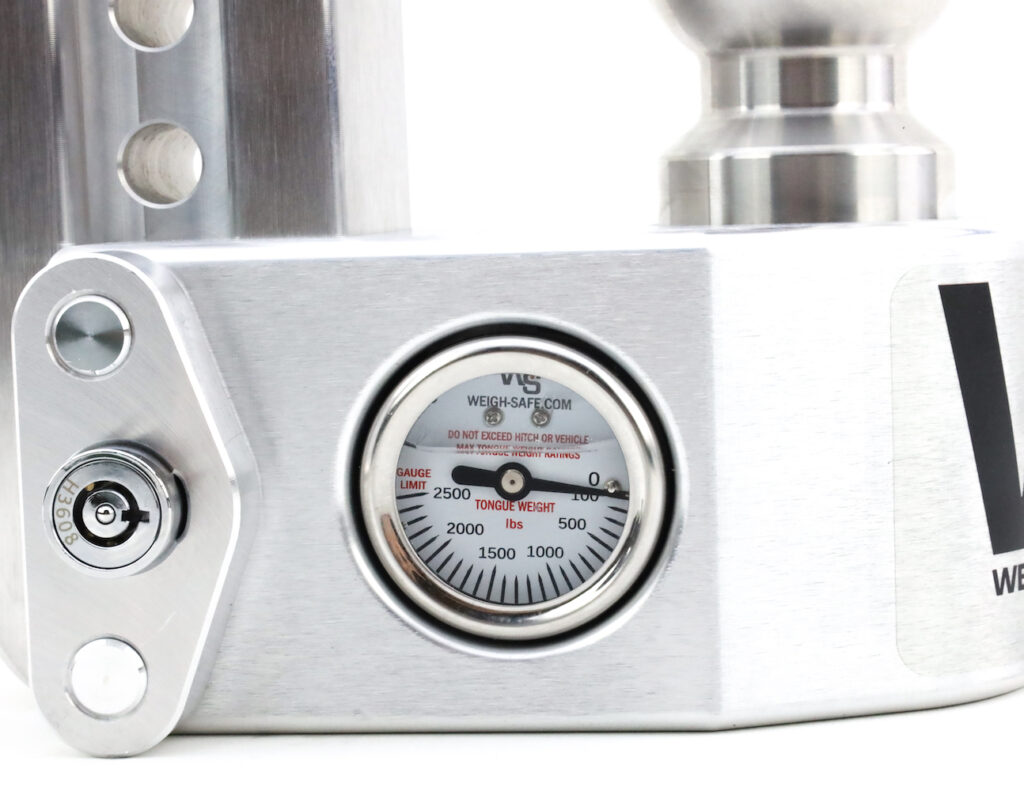

The Weigh Safe Drop Hitch is the best aluminum drop hitch on the market. This hitch features our signature built-in gauge, now filled with glycerin for increased durability and performance, that measures tongue weight so you never have to worry about an unbalanced and unsafe load again.
Crafted out of solid, aircraft grade aluminum, the Weigh Safe Drop Hitch is not only sleek but offers a Towing Peace of Mind with every towing journey. The aluminum Weigh Safe Drop Hitch is available in 4", 6", 8", and 10" drop lengths and 2", 2.5”, and 3” receiver sizes.

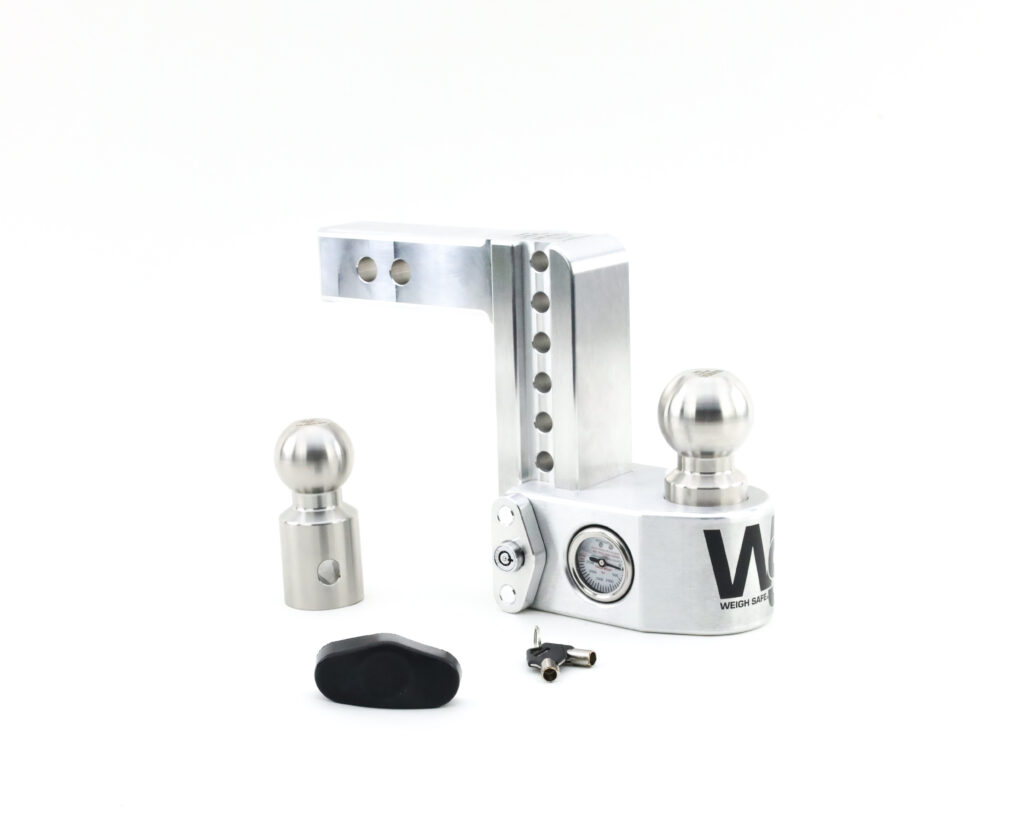

| 1- Drawbar | 1- Slider with Gauge |
| 1- 2″ Ball | 1- 2-5/16″ Ball |
| 1- Ball Retaining Pin | 1- Lock Plate Key Assembly |
| 1- Dust Lock Cover |
| Drop Lengths | 4" Drop 6" Drop 8" Drop 10" Drop |
|---|---|
| Built-in Scale | ✓ |
| Shaft | 2", 2.5", or 3" |
| Ball | 2" & 2-5/16" Stainless Steel Balls Included 1-7/8 add-on option" |
| Max GTW | 2" Shank: 1 7/8" ball - 7500 lbs 2" ball - 8000 lbs 2 5/16" ball 12,500 lbs 2.5" Shank: 2 5/16” ball - 18,500 lbs 3" Shank: 2-5/16" ball - 21,000 lbs |
| Max Tongue | 1,500 lbs (2" Shaft), 2,200 lbs (2.5" & 3" Shafts) |
| V5 & J684 certified | ✓ |
| Drop Hitch Adjustment | 1” increments |
| Weight | 4" Drop = 16 lbs 6" Drop = 18 lbs 8" Drop = 19 lbs 10" Drop = 20 lbs |
| Ball material | Stainless steel |
| Pin | Dual pin key lock assembly included |
| Rise | All hitches may be used in rise position *Gain 1 inch (e.g., 4” drops are 5” rises) |
| Total Height | Add 3 inches (*e.g., 4” drops measure 7" from the top of the receiver to the hitch base) |
| Hitch Pin Hole | 5/8" Diameter |
| Compatible with Clam Shell | ✓ |
| Stowable | ✓ ***Our Weigh Safe 3" shank sizes are not stowable |
| Saves Property | ✓ |
| Saves Time | ✓ |
| Maintenance | Stainless steel tow balls can still show surface rust, particularly after use in a coupler and exposure to water/salt. This rust will not spread past the surface of the towball and it will not affect the performance of the towball. The rust can be cleaned up and removed with a scotch brite/brillo pad. |
