Description

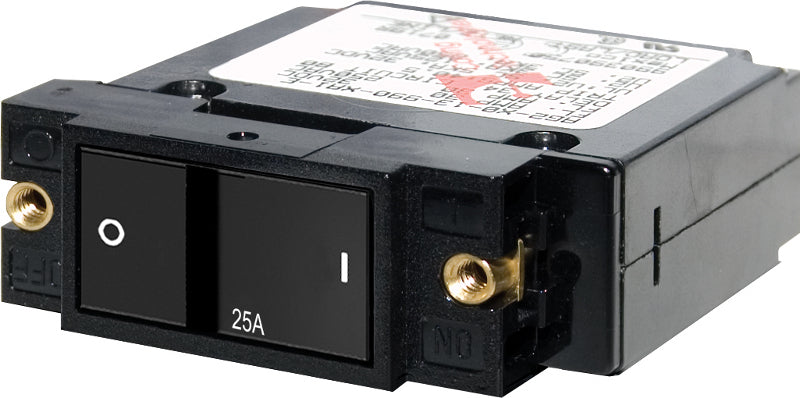

- Standard circuit breaker used on the 360 Panel system (1200 Series)
- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Color actuator indicates "OFF" position
- "Trip Free" design cannot be held "ON" during fault current condition
- Prevents accidental switching of 24 hour circuits
- International ON/OFF symbols support vertical or horizontal mounting
- Voltage Maximum Operating: 32 Volt DC / 250 Volt AC
- Temperature Minimum Operating: -40 Deg. C
- Temperature Maximum Operating: 85 Deg. C
- Switching Cycles: 10,000 @ rated amps and volts
- Type: Magnetic HydraulicÑTrip free
- Terminal Screw: #10-32 Stainless Steel
- Terminal Screw Torque: 14Ð15 in-lb Recommended (load terminal is 30 Deg. angled)
- Mounting Screw #6-32 Stainless Steel (included)
- Mounting Screw Torque 6Ð8 in-lb Recommended
