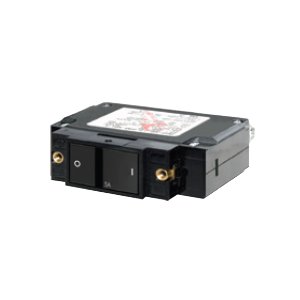

Description
- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Color actuator indicates "OFF" position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free"-cannot be held closed after trip
- Ignition protected-safe for installation aboard gasoline powered boats
- Circuit Breaker Type: Magnetic Hydraulic
- Operating Temperature Range: -40 Deg. C to +85 Deg. C
- Terminal Stud: 1/4"-20 Tin-Plated Brass-Maximum torque 35 in-lb
- Rated Switch Cycles: 10,000 @ rated amperage and voltage
- Case Material: Phenolic
- Mounting Screw: Stainless Steel #6-32-recommended torque 6-8 in-lb
