Description

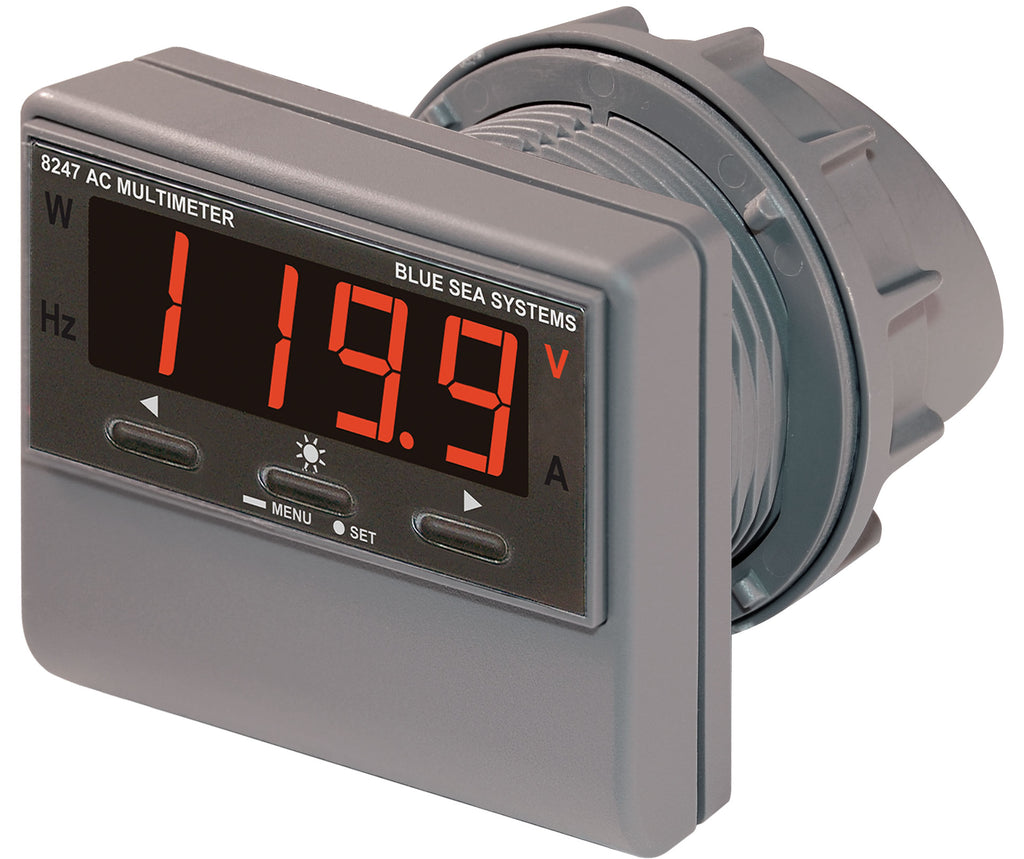

AC Digital Multimeter with Alarm, 0 - 150 Amp, 80 - 250 Volt, 8247. Allows easy monitoring of key AC functions.
- Displays amperage from 0 to 150 Amps
- Displays voltage from 80 to 270 Volts
- Displays power from 0 to 35 Kilowatts
- Displays frequency from 40 to 90 Hertz
- High and low voltage and high amperage alarms, both audio and visual
- 3 levels of display brightness
- Programmable sleep mode blanks display for power conservation
- Splashproof front
- Includes current transformer
Input Voltage: 80-249 Volts AC (For 120 & 240 Volt AC single phase systems)
Minimum Power Consumption: 0.6 Watt (Variable with voltage, display intensity, segments illuminated, and sleep mode)
Maximum Power Consumption: 1.0 Watt (Variable with voltage, display intensity, segments illuminated, and sleep mode)
Display Character Size: 9/16" (14.29mm)
Dimensions
Width: 2.90" (73.56mm)
Height: 2.43" (61.75mm)
Depth: 3.40" (86.36mm)
Weight: 0.78 lb. (0.35kg.)
