Description

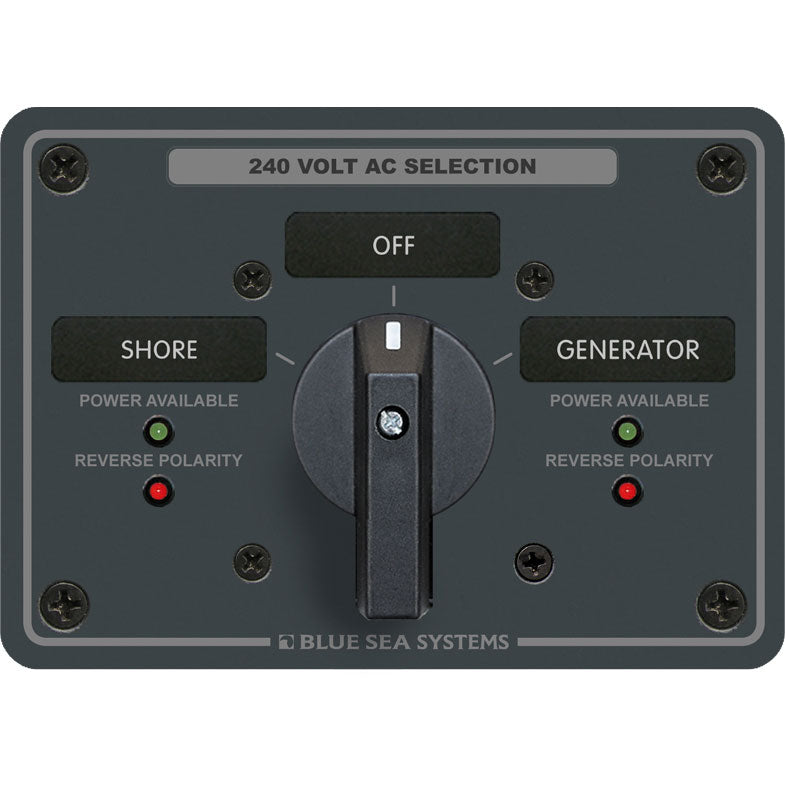

Blue Sea Systems, AC Rotary Switch Panels, 2 positions + OFF. Provides a compact and intuitive solution for safely managing AC sources when circuit protection is provided elsewhere.
- Switches 2 - 120/240 Volt AC sources
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Red reverse polarity LED indicators
- Green power available LED indicators
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two or three different AC sources to one circuit
| Specifications | |
|---|---|
| Positions | 2 + OFF |
| Nominal Voltage | 240V AC |
| Poles | 3 |
| Maximum Amperage | 65A |
| Source In | 2 |
| Height | 3.75in (95.25 mm) |
| Width | 5.25in (133.35 mm) |
| Depth | 3.65in (92.71 mm) |
| Weight | 1.41lb (0.64 kg) |
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers and P12 Remote Displays are warranted for a period of five years from the date of first purchase. Digital Meters and Vessel System Monitors are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Returns: All returns must be received within 30 days of receipt of the order. Manufacturer defects reported within 30 days of receipt will be supplied a prepaid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns, and help with Warranties.
