Description

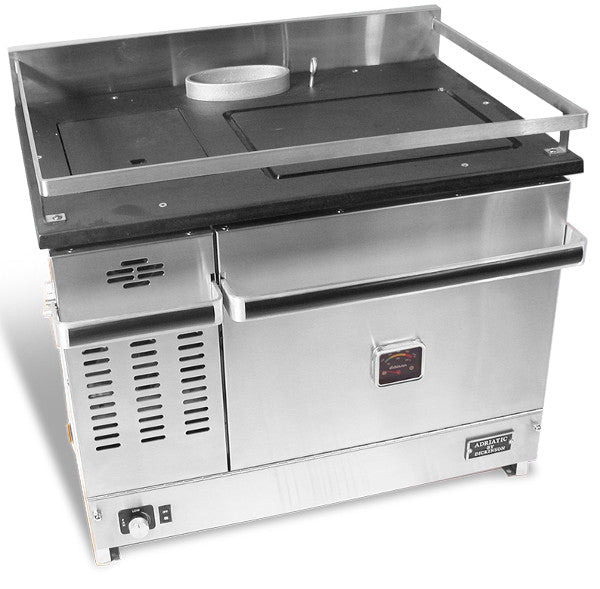

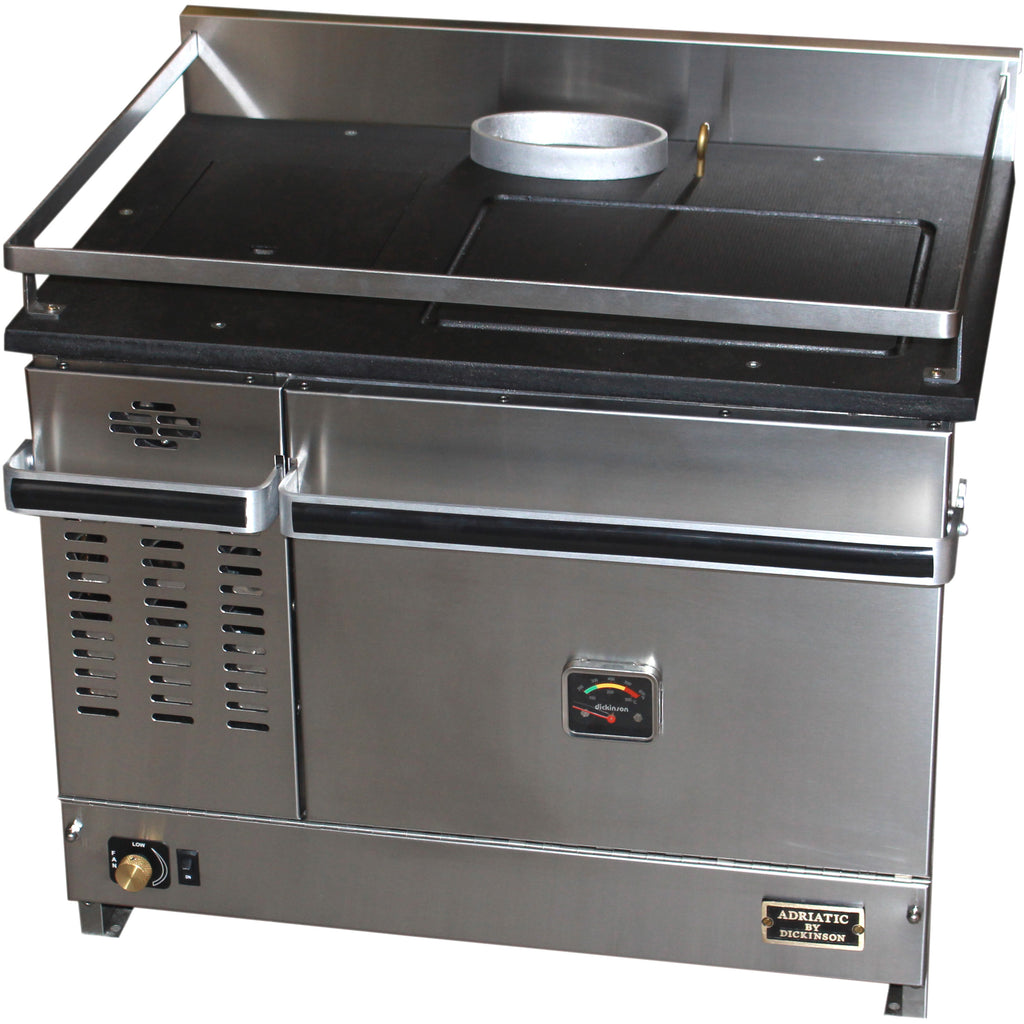

The Adriatic Cook Stove is ideal for medium size vessels 30-45ft. Similar in appearance to the Pacific but provides a larger cooking surface and a wider oven that is more accommodating.
- Requires
- Minimum 6ft or maximum 8ft of chimney is required, a straight run with no elbows work best.
- Chimneys 6ft or longer Dickinson highly recommends a .
- Permanent fresh air vent needed in area of the unit.
- Creates a dry heat to dry out moisture inside the vessel.
- In sailboat installations, this unit must face fore or aft, if facing port or starboard is desired, the valve would need to be mounted to the side of the unit so the gravity fed valve wonÕt starve the burner on heels up to 15 degrees
- 12v, 24v or 32v draft assist fan included. Used for start up and draft assistance on high fire.
- Valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil.
- 1 turn hot water coil for 5-10 gal or a 2 turn hot water coil for 15-20 gal can be installed for water heating.
Width: 26.25_
Height: 23.50_
Depth: 21.50_
Weight: 135 lbs
Oven Size: W15" X D13" X H10.5"
- Fuel Consumption / 24hr:
- 1.30 gal LOW
- 3.20 gal HIGH Heat Output:
- Low: 6500 BTU
- High: 16250 BTU
*ships on a pallet
