Description
AmSteel II Plus has a high-strength core with a cover that creates a firm rope while serving to protect the strength-member core. The rope has extremely low elongation and is an even stronger, lightweight alternative for wire rope.
- Lightweight
- Low elastic elongation
- Wire rope replacement
- PRODUCT CODE: 875
- FIBER: HMPE / Polyester
- SPECIFIC GRAVITY: 1.2
- SPLICE/CLASS:
- Double Braid Class II
- ELASTIC ELONGATION:
- At percent of break strength
- 10% ..................................0.50%
- 20% ..................................0.67%
- 30% ..................................0.96%

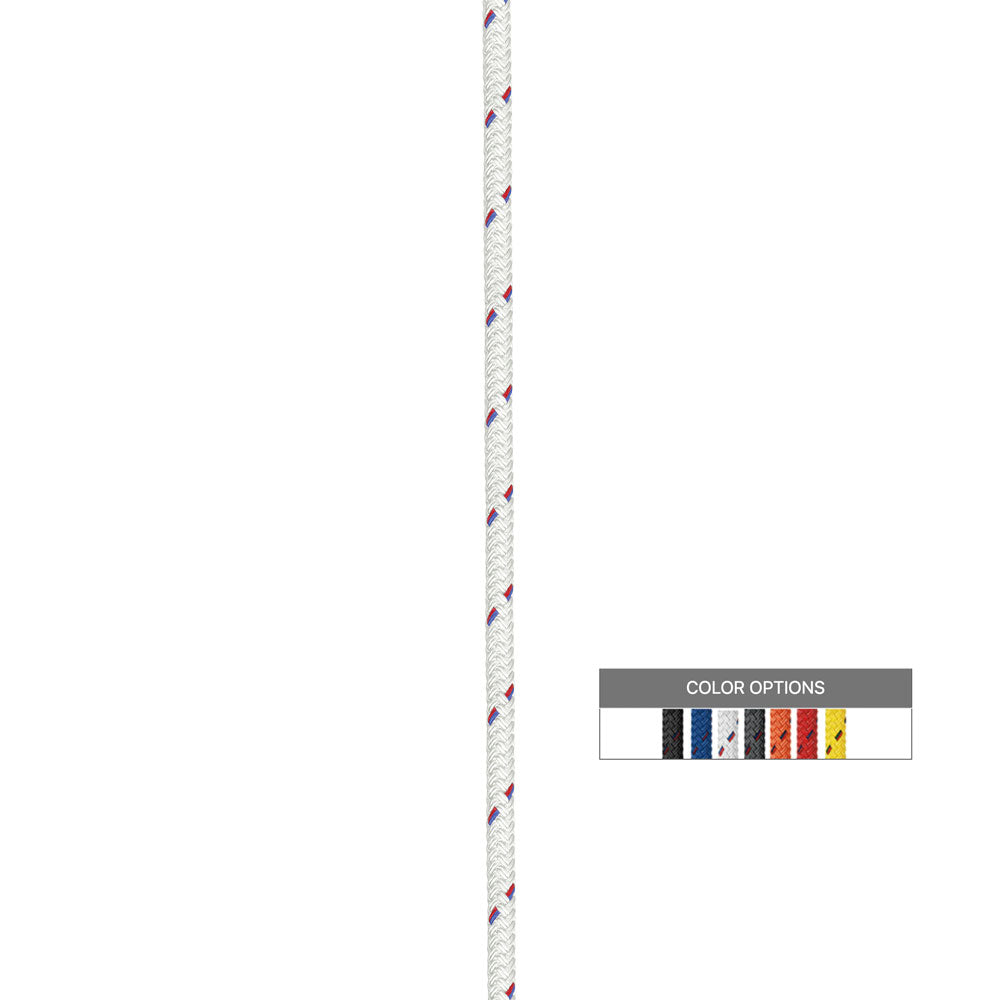

- COLOR OPTIONS: Coated black, blue, clear, gray, orange, or yellow — all with blue and red ID
| DIAM. (INCH) | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 13/16 | 7/8 | 1 | 1 1/16 | 1 1/8 | 1 1/4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CIRC. (INCH) | 3/4 | 1 | 1 1/8 | 1 1/4 | 1 1/2 | 1 3/4 | 2 | 2 1/4 | 2 1/2 | 2 3/4 | 3 | 3 1/4 | 3 1/2 | 3 3/4 |
| WEIGHT PER 100 FT. (LBS) | 2.2 | 3.5 | 4.1 | 6.1 | 8.6 | 10 | 12.6 | 16 | 20.3 | 24.8 | 29.7 | 31.7 | 37 | 42.6 |
| AVG. STRENGTH (LBS) | 5,600 | 9,300 | 12,200 | 14,600 | 19,400 | 28,000 | 33,800 | 43,800 | 50,000 | 62,500 | 71,300 | 74,000 | 90,000 | 101,000 |
| MIN. STRENGTH (LBS) | 4,800 | 7,900 | 10,400 | 12,400 | 16,500 | 23,800 | 28,700 | 37,200 | 42,500 | 53,100 | 60,600 | 62,900 | 76,500 | 85,900 |
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Cut rope is non-returnable.
