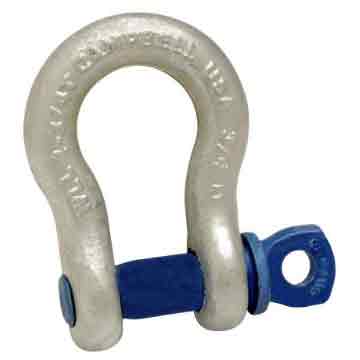

7/16" Anchor Shackle, Screw Pin, Forged Carbon Steel, Galvanized
- Shackle Bodies Are Drop-Forged Carbon Steel
- Galvanized to Meet ASTM A-153 Specifications
- C-419-G Shackles Meet the Design Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2
- Working Load Limit, Size, Manufacture Name, Date Code and USA Permanently Marked on Each Shackle
- 419 Series Shackles Meet or Exceed All Manufacturing Requirements of the ASME B30.26 ”Rigging Hardware”. These Include the Material Ductility Requirement (Section 26-1.1.2), the Design Factor Requirement (Section 26.1.2), the Identification Requirement (Section 26-1.5.1), and the Effective Temperature Range (Section 26-1.6.1). the Shackles Can Be Proof Tested in Accordance with Section 26-1.4
- Certification Available Upon Request
- 6 to 1 Design Factor on Shackles 1/4" to 2", 5 to 1 Design Factor on 2-1/2"
- Pins and Bolts Are Heat-Treated and Made of Alloy Steel
- DO NOT EXCEED THE WORKING LOAD LIMIT
| Trade Size Fractional | 7/16 in |
| Working Load Limit Short Ton | 1-1/2 T |
| Length Tolerance (+/-) | 1/8 in |
| Width Tolerance (+/-) | 1/8 in |

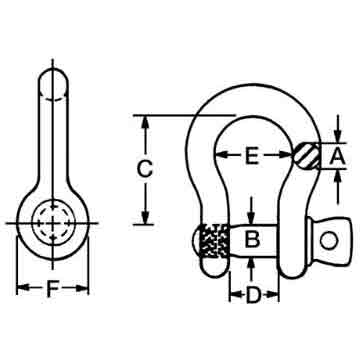

| B Dimension | 1/2 in |
| C Dimension | 1-3/4 in |
| D Dimension | 23/32 in |
| E Dimension | 1-5/32 in |
| F Dimension | 1-1/8 in |
| Weight Each (lbs.) | 0.52 lb |
