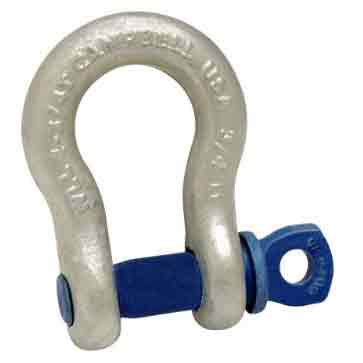

7/8" Anchor Shackle, Screw Pin, Forged Carbon Steel, Galvanized
- Shackle Bodies Are Drop-Forged Carbon Steel
- Galvanized to Meet ASTM A-153 Specifications
- C-419-G Shackles Meet the Design Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 2
- Working Load Limit, Size, Manufacture Name, Date Code and USA Permanently Marked on Each Shackle
- Statistically Tested for Impact Resistance, Tensile Strength, Hardness, Ductility and Fatigue
- Certification Available Upon Request
- 6 to 1 Design Factor on Shackles 1/4" to 2" 5 to 1 Design Factor on 2-1/2"
- Pins and Bolts Are Heat-Treated and Made of Alloy Steel
- DO NOT EXCEED THE WORKING LOAD LIMIT
| Trade Size Fractional | 7/8 in |
| Working Load Limit Short Ton | 6-1/2 T |
| Length Tolerance (+/-) | 1/4 in |
| Width Tolerance (+/-) | 1/8 in |

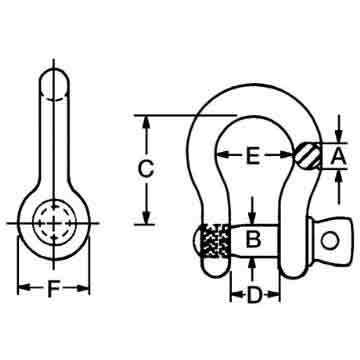

| B Dimension | 1 in |
| C Dimension | 3-1/8 in |
| D Dimension | 1-7/16 in |
| E Dimension | 2-1/16 in |
| F Dimension | 2 in |
| Weight Each (lbs.) | 3.20 lb |
