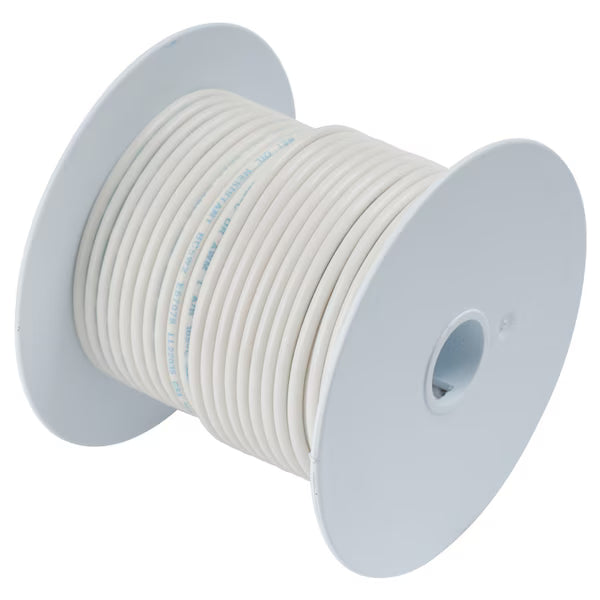

18 Gauge Marine Tinned Primary Wire
18 AWG - Nominal OD Size: 7/64"
Constructed to American Wire Gauge standards, AWG wire is up to twelve percent larger than the equivalent SAE wire sizes. AWG wire provides a greater current capacity when compared to SAE gauge wire.
Marine Tinned Wire and Cables are manufactured from tin coated copper strands for maximum protection against corrosion, electrolysis and resists fatigue due to vibration and flexing.
Rated at 600 volts and 105 degrees C, the heavy duty insulation is resistant to heat and abrasion. Exceeds all UL1426, US Coast Guard Charterboat (CFR title 46) and ABYC standards.
| Color | Item | Use for |
|---|---|---|
| Red | DC Positive Conductor | Positive Mains |
| Black or Yellow | DC Negative Conductor | Return, Negative Mains |
| Green or Green w/ Yellow Stripe | DC Grounding Conductor | Bonding System, Bonding Wires (if insulated) |
| Light Blue | Oil Pressure | Oil Pressure Sender to Gauge |
| Dark Blue | Cabin & Instrument Lights | Fuse or Switch to Lights |
| Brown | Generator Armature | Generator Armature to Regulator |
| Brown | Alternator Charge Light | Generator, Terminal/Alternator, Auxillary Terminal to Light Regulator |
| Brown | Pumps | Fuse or Switch to Pumps |
| Grey | Navigation Lights | Fuse or Switch to Lights |
| Grey | Tachometer | Tachometer Sender to Gauge |
| Orange | Accessory Feed | Ammeter to Alternator or Generator Output and Accessory Fuses or Switches |
| Orange | Common Feed | Distribution Panel to Accessory Switch |
| Pink | Fuel Gauge | Fuel Gauge to Sender to Gauge |
| Purple | Ignition | Ignition Switch to Coil & Electrical Instruments |
| Purple | Instrument Feed | Distribution Panel Electrical Instruments |
| Brown w/ Yellow Stripe | Bilge Blowers | Fuse or Switch to Blower |
| Yellow w/ Red Stripe | Starting Circuit | Starting Switch to Solenoid |
| Tan | Water Temperature | Water Temperature Sender to Gauge |
| Green/Stripe (G/x) (except G/Y) | Tilt Down and/or Trim In | Tilt and/or Trim Controls |
| Blue/Stripe (Bl/x) | Tilt Up and/or Trim Out | Tilt and/or Trim Controls |
