Description

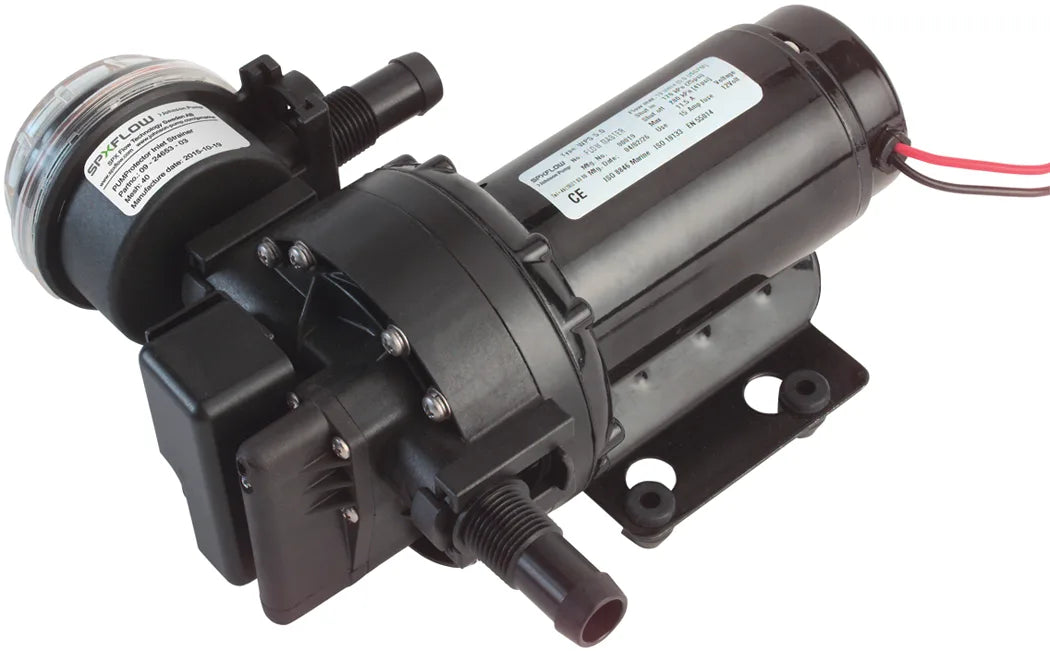

The whisper quiet self-priming Aqua Jet Flow Master WPS 5.0 pump incorporates state-of-the-art electronics to automatically control pump speed. The digital controller adjusts water flow as the demand is increased and decreased while maintaining a very smooth flow. The unique variable flow feature of the Aqua Jet Flow Master WPS 5.0 pump makes it a smart choice for better flow, lower noise and less amp draw.
- Limited 3 Year Warranty
- Maintains a very smooth flow as water demand is increased and decreased
- Five-chamber construction
- Self-priming
- Easy, low cost maintenance
- Quick-connect hose or threaded connectors available
- Pressure switch standard
- Long service life
- Operates in fresh or sea water
- PUMProtector Inlet Strainer included
- Recommended to install with an accumulator tank
Technical Data
| Part No. | Description | Capacity | Pressure Cut Off* | Voltage | Fuse Size | Connection |
| 10-13329-03 | Aqua Jet Flow Master WPS 5.0 12V | 19 l/min - 5 GPM | 3.5 bar, 50 psi | 12 V | 15 A | ⅜" BSP / hose ½", ½" BSP / hose ¾" |
| 10-13329-103 | Aqua Jet Flow Master WPS 5.0 12V | ⅜" NPT / hose ½"; ½" NPT / hose ¾"; ½" NPT ¾" hose ½ CTS | ||||
| 10-13329-04 | Aqua Jet Flow Master WPS 5.0 24V | 12 V | 8 A | ⅜" BSP / hose ½", ½" BSP / hose ¾" | ||
| 10-13329-104 | Aqua Jet Flow Master WPS 5.0 24V | ⅜" NPT / hose ½"; ½" NPT / hose ¾"; ½" NPT ¾" hose ½ CTS | ||||
| * Cut off pressure 2.1 bar/30 psi and 1.4 bar/20 psi available on request. | ||||||
Dimensions
| Part no. | Length | Width | Height | Weight |
| 10-13329-03
10-13329-103 10-13329-04 10-13329-104 |
239 mm/9.4" | 209 mm/8.22" | 113 mm/4.49" | 2 kg/4.5 lbs |
