Description
Material: SUS304
Do not use under conditions of constant rotation.

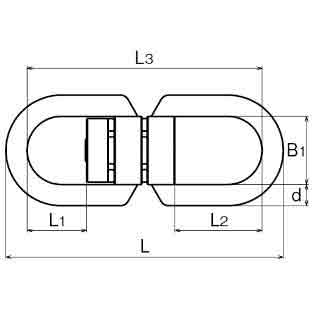

| No. | Size | d(mm) | L(mm) | L1(mm) | L2(mm) | L3(mm) | B1(mm) | Unit Weight(g) | Work Load Limit(kg) |
|---|---|---|---|---|---|---|---|---|---|
| AK2222 | 16 | 16 | 182 | 35 | 53 | 150 | 42 | 1300 | 1000 |
| AK2223 | 19 | 19 | 222 | 48 | 67 | 184 | 45 | 1800 | 1600 |
| AK2224 | 22 | 22 | 256 | 58 | 78 | 212 | 50 | 2600 | 2100 |
