Description
It can be used with thick rope, thanks to its turning arm.

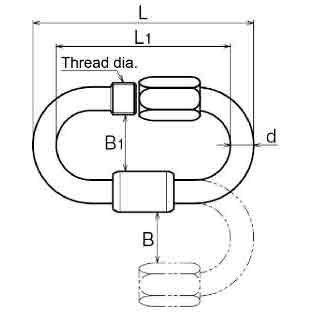

| Size | d(mm) | L(mm) | L1(mm) | B(mm) | B1(mm) | Thread dia. | Across Flats of Hex.(mm) | Unit Weight(g) | Work Load Limit(t) |
|---|---|---|---|---|---|---|---|---|---|
| 16 | 16 | 144 | 112 | 30 | 34 | M20 | 24 | 710 | 2.2 |
