Description
Baier 15" X 24" Flush Clear Opening, Oval Hex Centerbolt Steel Hatch*
The popular "Classic" Baier Flush Hatch is the flush-mounted, quick release, lift-out hatch with grab handles as shown. It has long been standard equipment on fishing boats, tugs, barges, workboats, and other marine vessels, as well as many U.S. Navy and U.S. and Canadian Coast Guard vessels.
Specifications:
Clear Opening: 15" X 24"
Cover Dimensions: 17" X 26"
Deck Cut Out: 17.5" X 26.5"
Cover Material: Cast Steel
Ring Material: Galvanized Steel
Features:
* Cast Hatch Cover
* Cast Strongback
* Stainless Steel Hex Centerbolt and hardware
* Neoprene Cover Gasket and Washers (Buna-N optional)
* Cast / fabricated matching Deck Ring
* Every unit shipped with an underside escape turning bar for safety (turning wheel optional)
* Detachable Hex wrench used for quick operation, can be stored separately for security
STRENGTH, SIMPLICITY and CONVENIENCE
The ultimate in strength and simplicity, Baier's original patented strongback system has only two moving parts to secure the hatch cover to the deck. It is superior to other more complicated hatch closure systems in that it is simpler, stronger, more reliably watertight, infinitely adjustable from topside, and more easily serviced (parts are readily available and replaced in the field). Importantly, the recessed hex centerbolt and grab handles offer no snags for nets, lines, or hardware.

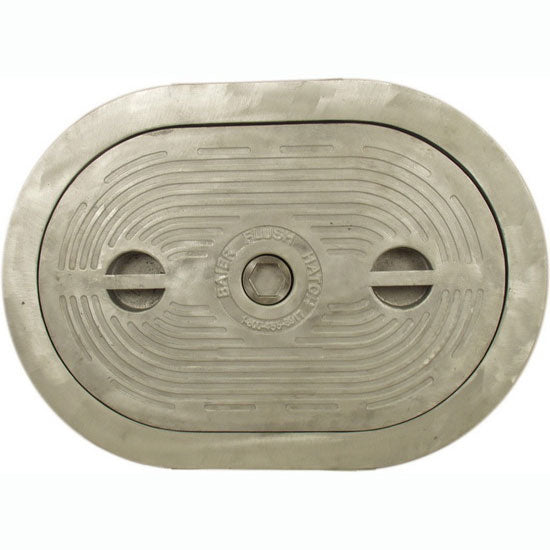

*Aluminum cover and ring are pictured.
The popular "Classic" Baier Flush Hatch is the flush-mounted, quick release, lift-out hatch with grab handles as shown. It has long been standard equipment on fishing boats, tugs, barges, workboats, and other marine vessels, as well as many U.S. Navy and U.S. and Canadian Coast Guard vessels.
Specifications:
Clear Opening: 15" X 24"
Cover Dimensions: 17" X 26"
Deck Cut Out: 17.5" X 26.5"
Cover Material: Cast Steel
Ring Material: Galvanized Steel
Features:
* Cast Hatch Cover
* Cast Strongback
* Stainless Steel Hex Centerbolt and hardware
* Neoprene Cover Gasket and Washers (Buna-N optional)
* Cast / fabricated matching Deck Ring
* Every unit shipped with an underside escape turning bar for safety (turning wheel optional)
* Detachable Hex wrench used for quick operation, can be stored separately for security
STRENGTH, SIMPLICITY and CONVENIENCE
The ultimate in strength and simplicity, Baier's original patented strongback system has only two moving parts to secure the hatch cover to the deck. It is superior to other more complicated hatch closure systems in that it is simpler, stronger, more reliably watertight, infinitely adjustable from topside, and more easily serviced (parts are readily available and replaced in the field). Importantly, the recessed hex centerbolt and grab handles offer no snags for nets, lines, or hardware.
*Aluminum cover and ring are pictured.
