Description
Barr, Rubber Front Engine Mount 350 lbs, 5/8" Stud
Barr, Rubber Front Engine Mount 350 lbs, 5/8" Stud.
Ê
- Rubber engine mount; double
- Increased capacity for diesel and extra heavy-duty applications
- Rubber cushions are locked to the base, not vulcanized and can be replaced
- Mount is vertically adjustable to facilitate engine alignment
- Each mount has a capacity of 350 lbs

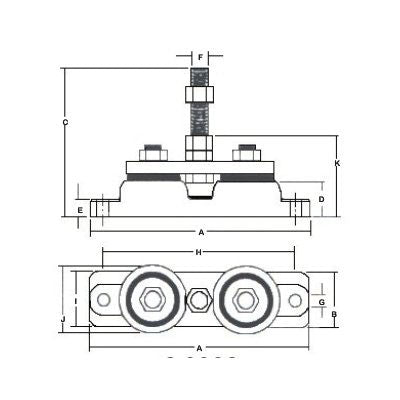

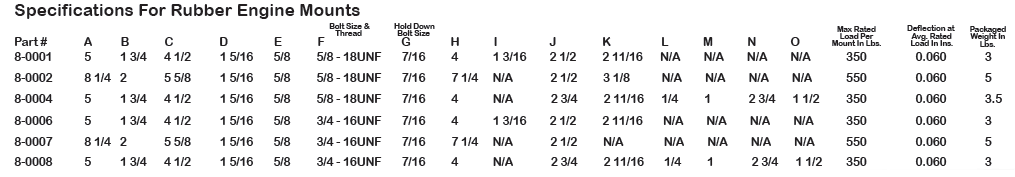

- A: 8-1/4
- B: 2
- C: 5-5/8
- D: 1-5/16
- E: 5/8
- F Bolt size & Thread: 5/8 - 18UNF
- G Hold Down Bolt Size: 7//16
- H: 7-1/4
- I: N/A
- J: 2-1/2
- K: 3-1/8
- L: N/A
- M: N/A
- N: N/A
- O: N/A
- Deflection at Avg. Rated load in Inches:.06
Ê
Manufacturer: Edm Barr Marine
Category: Inboard Engine Mounts
