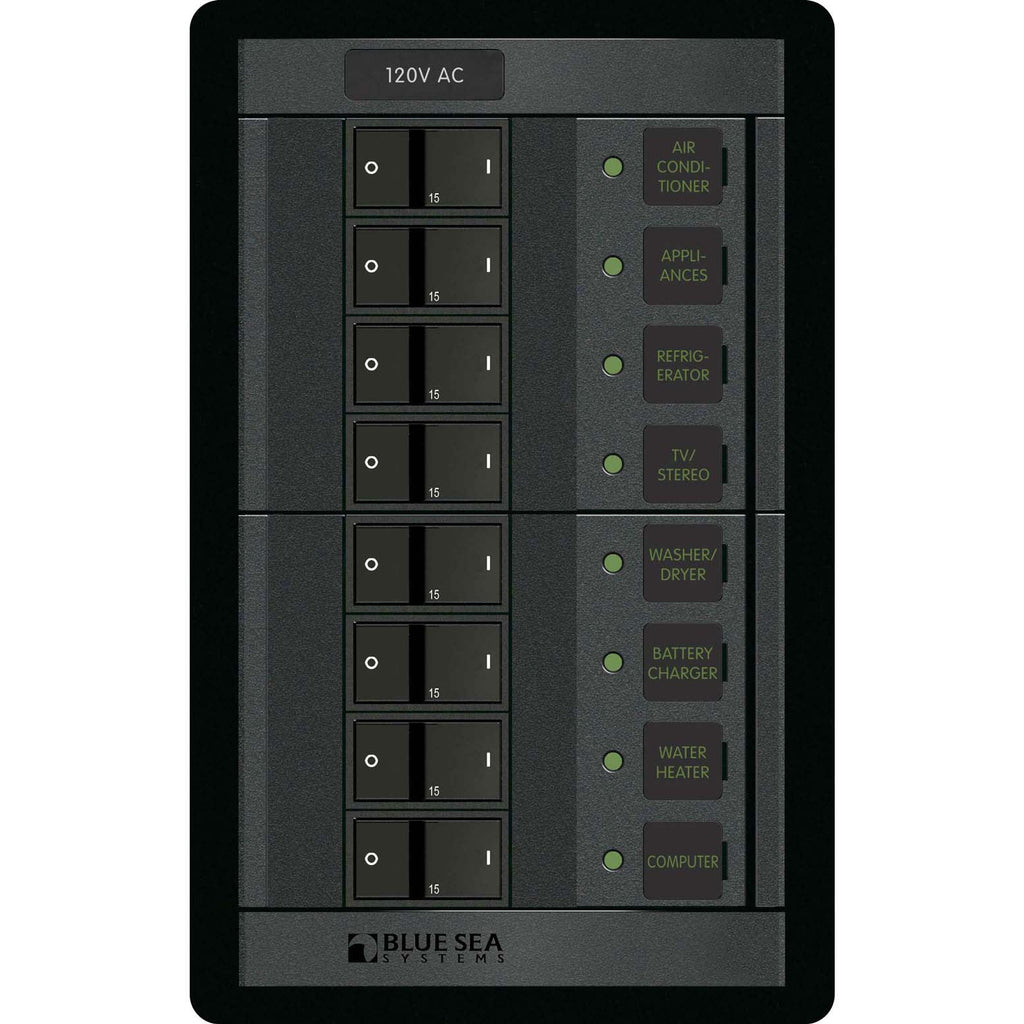

Description
- All circuit label positions are backlit
- “ON” indicating LEDs installed in all circuit positions
- Includes 4206—Square Format Label Set
| Specifications | |
|---|---|
| Positions | 8 |
| Nominal Voltage | 120V AC |
| Maximum Amperage | 100A |
| Height | 7.75in (196.85 mm) |
| Width | 4.88in (123.95 mm) |
| Depth | 3.00in (76.2 mm) |
| Weight | 2.68lb (1.22 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 4206 | Basic AC Label Kit - 30 Black Square Labels [LABEL] |
| 8 | 7403 | A-Series Flat Rocker Circuit Breaker - Single Pole 15A |
