Description

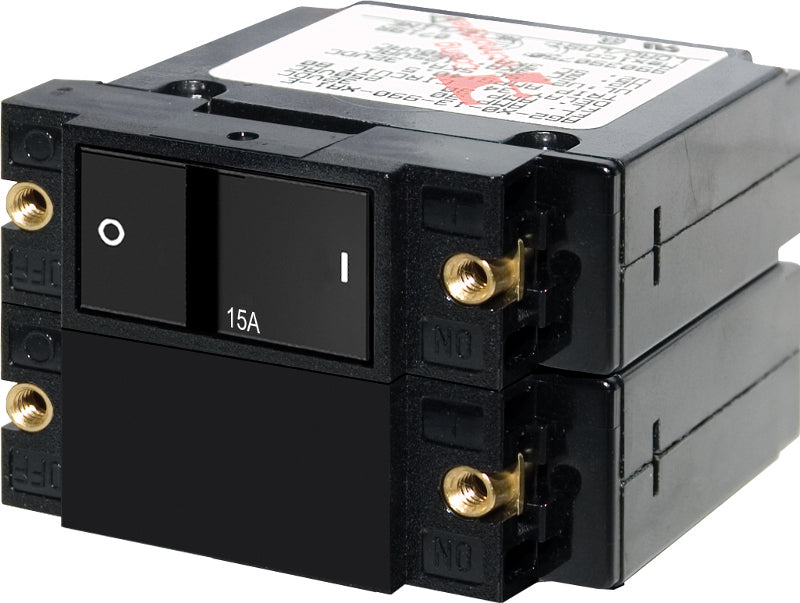

- Color actuator indicates "OFF" position
- "Trip Free" design cannot be held "ON" during fault current condition
- International ON/OFF symbols support vertical or horizontal mounting
- Operating Temperature Range: -40 deg.C to +85 deg.C
- Circuit Breaker Type: Magnetic Hydraulic-Trip free
- Terminal Screw: 30 deg. Angled #10-32 Stainless Steel-Recommended torque 14-15 in-lb trip time delay
- Rated Switch Cycles: 10,000@rated amperage and voltage
- Mounting Screw: #6-32 SS-Recommended torque 6-8 in-lb
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers and P12 Remote Displays are warranted for a period of five years from the date of first purchase. Digital Meters and Vessel System Monitors are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product Return: All returns must be received within 30 days of receipt of the order. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns and help with Warranties.
