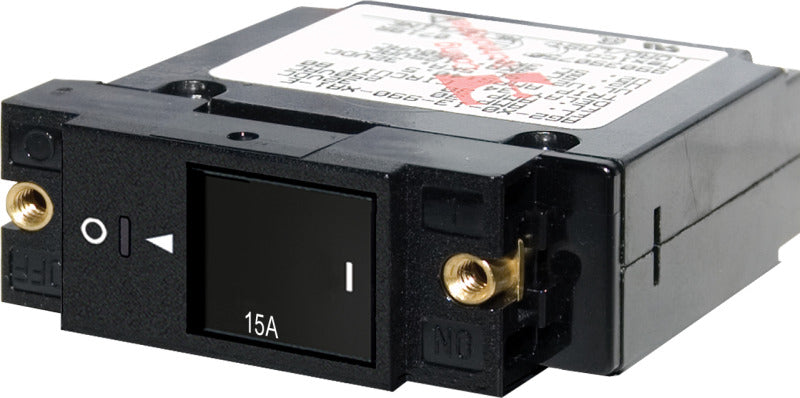

Description
- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Restricted OFF actuator can only be switched to OFF by insertion of small screwdriver into slot
- Actuator shows white in the OFF position
- "Trip Free" design cannot be held "ON" during fault current condition
- Prevents accidental switching of 24 hour circuits
- International ON/OFF symbols support vertical or horizontal mounting
- Interrupt Rating: 5,000A@32V DC, 3,000A@125V AC, 1,500A@240V AC
- Maximum Voltage: 32V DC, 240V AC
- Circuit Breaker Type: Magnetic Hydraulic-Trip free
- Operating Temperature Range: -40 Deg. C to +85 Deg. C
- Terminal Screw: 30 Deg. Angled #10-32 x 5/16 SS SEM LOAD, external tooth lock washer-Recommended torque 14-15 in-lb
- Rated Switch Cycles: 10,000 @ rated amperage and voltage
- Mounting Screw: #6-32 Stainless Steel - Recommended torque 6-8 in-lb
