Description

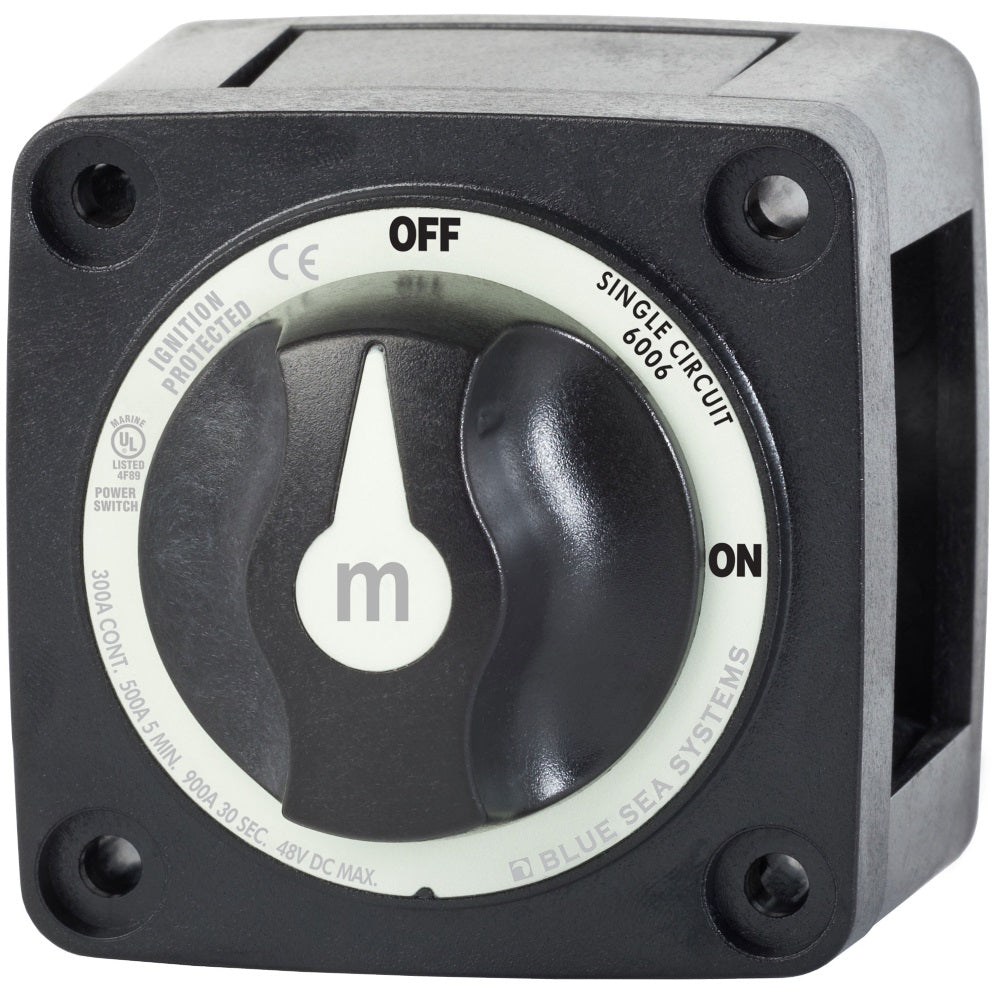

The Blue Sea 606200 Battery switch has 300 ampere continuous rating for outboards and those small gas or diesel engines. It is a one-piece tin-plated copper stud design that never loosens over time. It has terminal studs that accept 3/8" or M10 ring terminals. It features isolation cover with 3 removable sides. This mini switch is 2-7/8" the ignition is protected and UL listed. It is rated for 300 amps continuous, 500 intermittent, and 1500 cranking.
| Specifications | |
|---|---|
| Switch Type | Single Circuit ON-OFF |
| Color | Black |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.65Lb (0.29 Kg) |
| Weight | 0.65lb (0.29 kg) |
