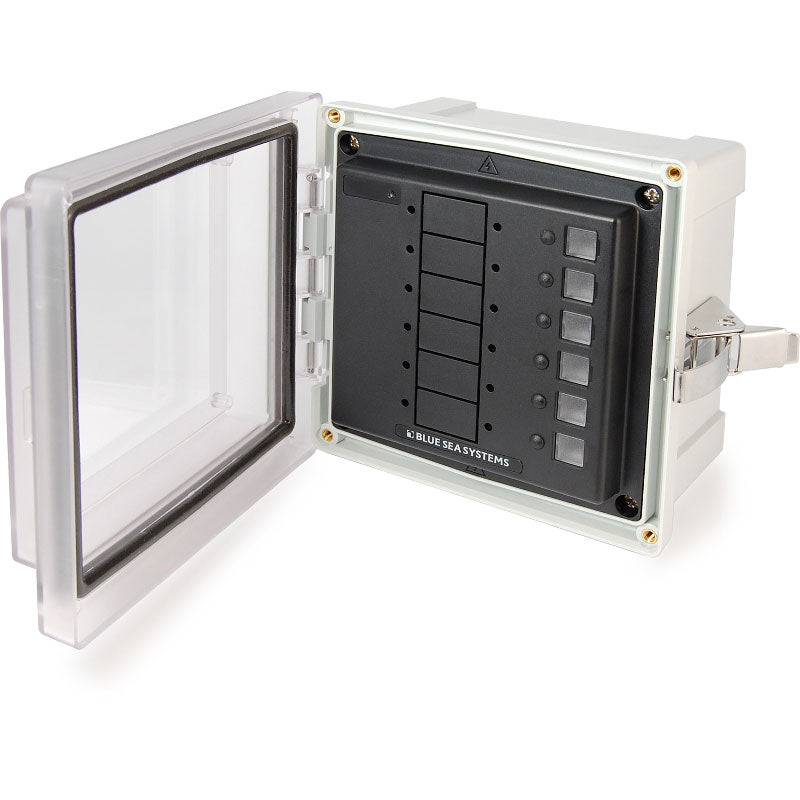

Description
- Blank apertures for custom breaker loading
- Glass filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Enclosure Size 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
- Exterior Overall Dimensions 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
- Temperature Range -40 Deg. C to 85 Deg. C
- Cover Screws and Hardware 10-32 Stainless Steel, Mounting Hardware 1/4" Diameter, #12 (6 mm) included
- 6 LED plugs
- 12 circuit breaker mounting screws
- 30 Basic Square DC labels, 4205
- 30 Basic Square AC labels, 4206
- Panel Voltage ID labels
Additional Information
