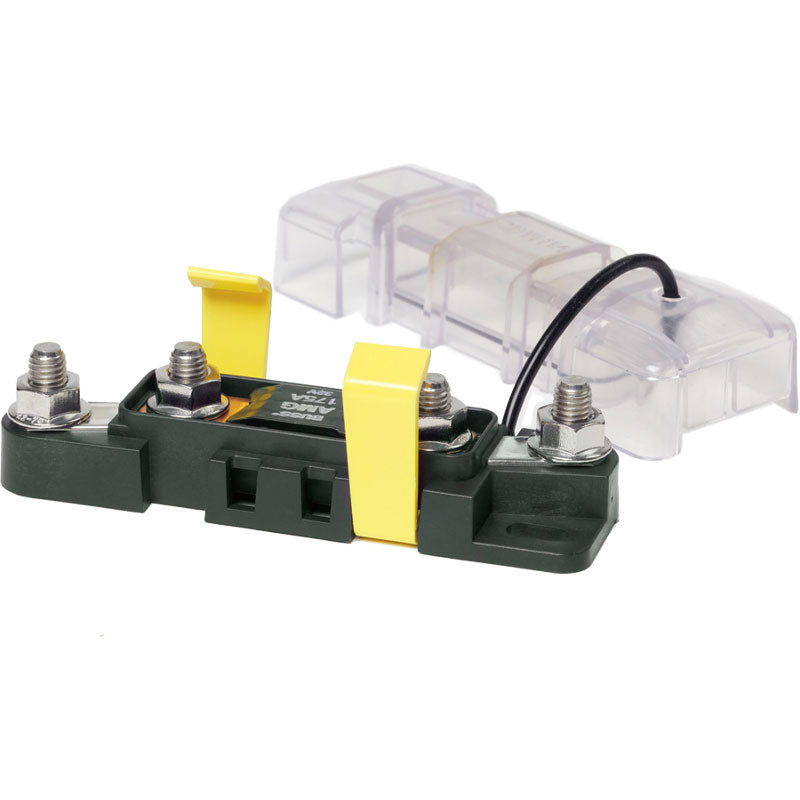

Description
- Ignition protected for installation aboard gasoline or diesel powered boats
- Sealed cover protects fuses from the harsh marine environment
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- 300A maximum with 2/0 cable
- Accepts Blue Sea Systems Square Format standard or custom label
- Fuses sold separately
- Maximum Amperage: 300A
- Maximum Voltage: 32V DC
- Cable Size to Meet Ratings: 2/0 AWG (70 mm)
- Recommended Torque: M8 x 1.25 SS Studs - 120 in-lb (13.56 N-m)
- Meets ISO 8846 ignition protection, and SAE J1171 external ignition protection requirements
- IP66- protected against powerful water jets
