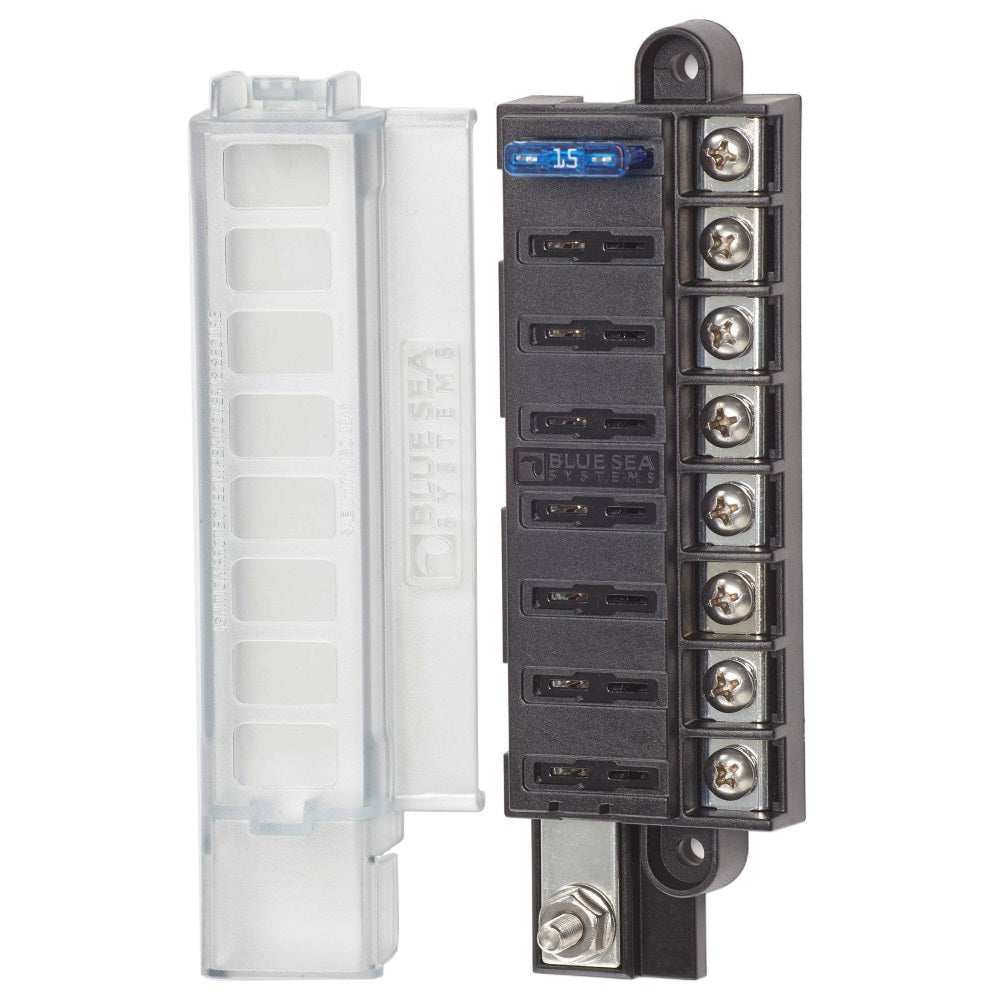

Blue Seas ST Blade Compact Fuse Blocks- 8 Circuits

Blue Sea SystemsSKU: 539573
MPN: 5046 | Catalog No: BSS5046
In Stock - Ships out in 1 Business Day
Circuits: 8 | Max Amperage: 100A Per Block, 30A Per Circuit | Max. Voltage: 32V DC | Terminal Stud Torque: 24 in-lb (2.71 Nm) | Screw Terminal Torque: 18 in-lb (2.03 Nm) | Screw Terminal Type: #8-32 Screws with captive star lock washer | Terminal Stud Size: #10-32 | Mountin: #8 Screw (M4)

Price:
Sale price$60.50

Description

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.
  • Ignition protected when the cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Single side design allows wire entry from one side to minimize the footprint
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork-type terminals
  • Includes 8 write-on circuit labels

Additional Information

Prop 65 Warning IconWARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information, visit P65Warnings.ca.gov

Warranty: Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers and P12 Remote Displays are warranted for a period of five years from the date of first purchase. Digital Meters and Vessel System Monitors are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product Return: All returns must be received within 30 days of receipt of the order. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns and help with Warranties.
