Description

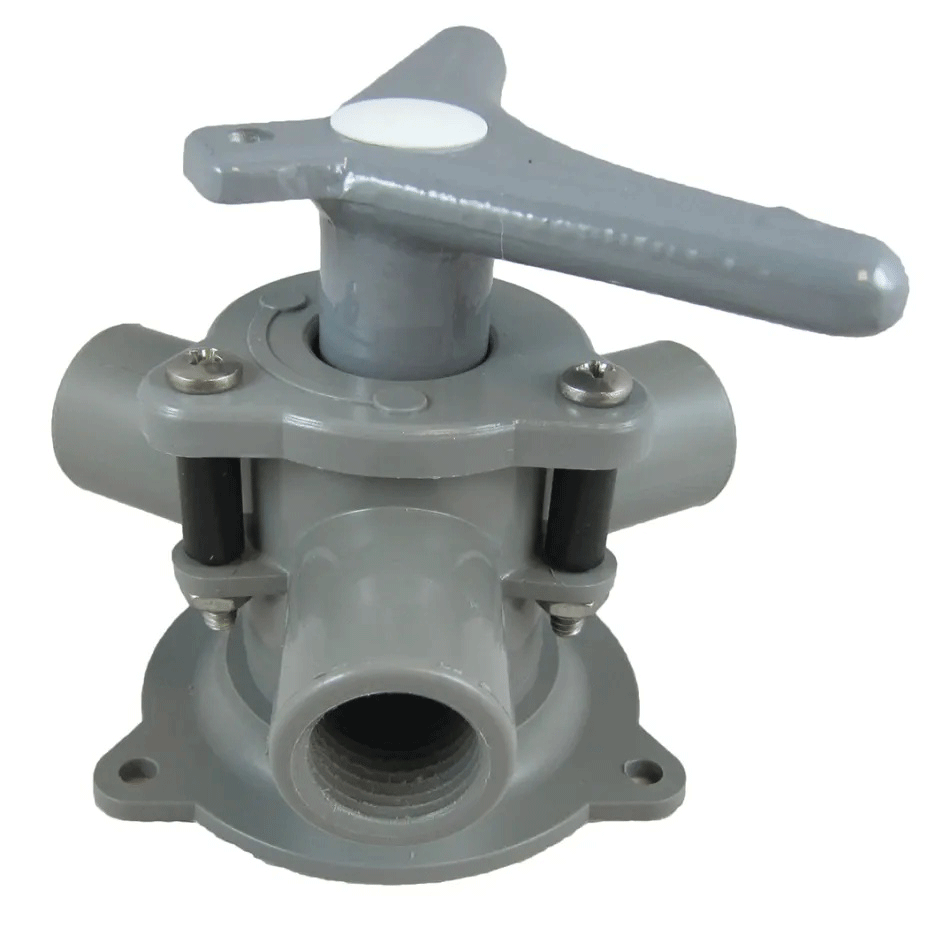

Bosworth 94BM-A-CPH Base Mount Y-Valve, 1/2" NPT Tapped (F), "V" Handle, Acetal
Easy to turn means easy to use! (Also called the "BM-94".) Redesigned for ease of turning and to resist valve "freeze-up". Base-mounted version of the "94" series Y-valve. A convenient 3-hole base mount plate allows the YV-094D-B to be easily mounted to a deck, floor or wall. Comes standard with 1" ID hose ends, but tapped and threaded ends are also available. A removable stop ring converts easily from 2-way to 3-way flow.
Features
• Durable, lightweight Acetal plastic
• Accommodates 1/2" - 1" hose
• Easy-turning handle made from tough, injection-molded Acetal resin. (Also available in epoxy-coated aluminum.)
• Base-mounting plate with 3 mounting holes
• Locking tab on handle
• Arrows on handle indicate flow path
• Supports either 2 or 3 flow path mode
• Optional barbed adapters shipped loose in box; install on ports of your choosing
• Max Pressure: 40 PSI
• Max Service Temp: 212°F
